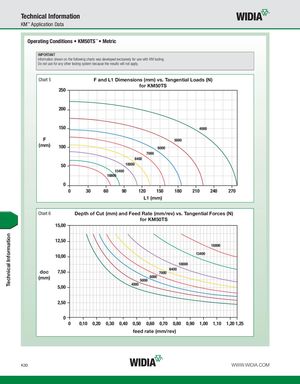

Technical Information KM™ Application Data Operating Conditions • KM50TS™ • Metric IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling. Do not use for any other tooling system because the results will not apply. Chart 5 F and L1 Dimensions (mm) vs. Tangential Loads (N) for KM50TS 250 200 150 4000 F 5000 (mm) 100 6000 7000 8400 50 10000 13400 16800 0 0 30 60 90 120 150 180 210 240 270 L1 (mm) Chart 6 Depth of Cut (mm) and Feed Rate (mm/rev) vs. Tangential Forces (N) for KM50TS 15,00 Technical Information 12,50 16800 13400 10,00 10000 8400 doc 7,50 7000 (mm) 6000 5000 4000 5,00 2,50 0 0 0,10 0,20 0,30 0,40 0,50 0,60 0,70 0,80 0,90 1,00 1,10 1,20 1,25 feed rate (mm/rev) K30 WWW.WIDIA.COM
