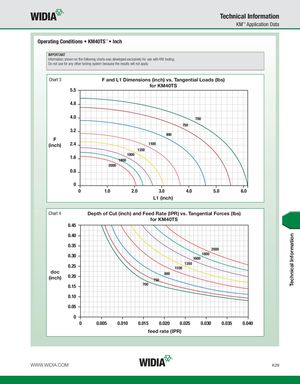

Technical Information KM™ Application Data Operating Conditions • KM40TS™ • Inch IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling. Do not use for any other tooling system because the results will not apply. Chart 3 F and L1 Dimensions (inch) vs. Tangential Loads (lbs) for KM40TS 5.5 4.8 4.0 700 750 3.2 900 F (inch) 2.4 1100 1350 1.6 16001800 2000 0.8 0 0 1.0 2.0 3.0 4.0 5.0 6.0 L1 (inch) Chart 4 Depth of Cut (inch) and Feed Rate (IPR) vs. Tangential Forces (lbs) for KM40TS 0.45 0.40 0.35 2000 0.30 18001600 0.25 13501100 doc(inch) 0.20 900750 0.15 700 0.10 0.05 0 0 0.005 0.010 0.015 0.020 0.025 0.030 0.035 0.040 feed rate (IPR) WWW.WIDIA.COM K29 Technical Information
