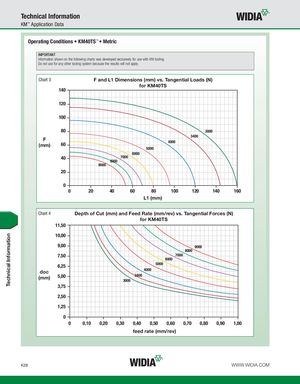

Technical Information KM™ Application Data Operating Conditions • KM40TS™ • Metric IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling. Do not use for any other tooling system because the results will not apply. Chart 3 F and L1 Dimensions (mm) vs. Tangential Loads (N) for KM40TS 140 120 100 80 3000 3400 F(mm) 60 4000 5000 6000 40 7000 8000 9000 20 0 0 20 40 60 80 100 120 140 160 L1 (mm) Chart 4 Depth of Cut (mm) and Feed Rate (mm/rev) vs. Tangential Forces (N) for KM40TS 11,50 10,00 9,00 9000 8000 7,50 7000 6000 6,25 5000 doc 4000 (mm) 5,00 34003000 3,75 2,50 1,25 0 0 0,10 0,20 0,30 0,40 0,50 0,60 0,70 0,80 0,90 1,00 feed rate (mm/rev) K28 WWW.WIDIA.COM Technical Information
