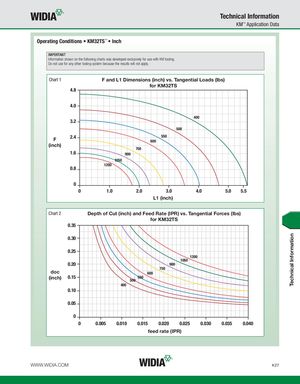

Technical Information KM™ Application Data Operating Conditions • KM32TS™ • Inch IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling. Do not use for any other tooling system because the results will not apply. Chart 1 F and L1 Dimensions (inch) vs. Tangential Loads (lbs) for KM32TS 4.8 4.0 400 3.2 500 F 2.4 550600 (inch) 750 1.6 900 1050 1200 0.8 0 0 1.0 2.0 3.0 4.0 5.0 5.5 L1 (inch) Chart 2 Depth of Cut (inch) and Feed Rate (IPR) vs. Tangential Forces (lbs) for KM32TS 0.35 0.30 0.25 1200 1050 0.20 900 750 doc 600 (inch) 0.15 550500 400 0.10 0.05 0 0 0.005 0.010 0.015 0.020 0.025 0.030 0.035 0.040 feed rate (IPR) WWW.WIDIA.COM K27 Technical Information
