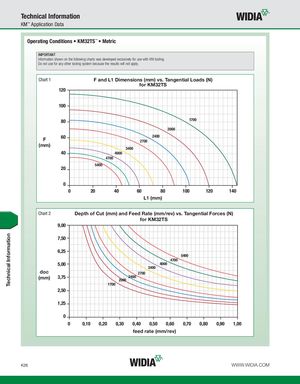

Technical Information KM™ Application Data Operating Conditions • KM32TS™ • Metric IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling. Do not use for any other tooling system because the results will not apply. Chart 1 F and L1 Dimensions (mm) vs. Tangential Loads (N) for KM32TS 120 100 1700 80 2000 60 2400 F 2700 (mm) 3400 40 4000 4700 5400 20 0 0 20 40 60 80 100 120 140 L1 (mm) Chart 2 Depth of Cut (mm) and Feed Rate (mm/rev) vs. Tangential Forces (N) for KM32TS 9,00 Technical Information 7,50 6,25 5400 4700 5,00 4000 3400 doc 2700 (mm) 3,75 2400 2000 1700 2,50 1,25 0 0 0,10 0,20 0,30 0,40 0,50 0,60 0,70 0,80 0,90 1,00 feed rate (mm/rev) K26 WWW.WIDIA.COM
