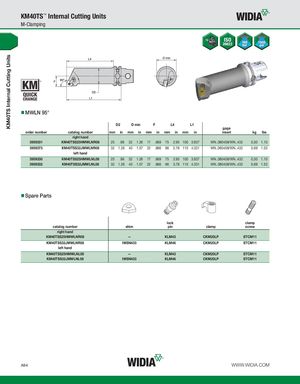

KM40TS Internal Cutting Units KM40TS™ Internal Cutting Units M-Clamping MWLN 95° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3959331 KM40TSS25HMWLNR08 25 .98 32 1.26 17 .669 75 2.95 100 3.937 WN..080408/WN..432 0,50 1.10 3959373 KM40TSS32JMWLNR08 32 1.26 40 1.57 22 .866 96 3.78 110 4.331 WN..080408/WN..432 0,69 1.53 left hand 3959330 KM40TSS25HMWLNL08 25 .98 32 1.26 17 .669 75 2.95 100 3.937 WN..080408/WN..432 0,50 1.10 3959332 KM40TSS32JMWLNL08 32 1.26 40 1.57 22 .866 96 3.78 110 4.331 WN..080408/WN..432 0,69 1.53 Spare Parts lock clamp catalog number shim pin clamp screw right hand KM40TSS25HMWLNR08 — KLM43 CKM20LP STCM11 KM40TSS32JMWLNR08 IWSN433 KLM46 CKM20LP STCM11 left hand KM40TSS25HMWLNL08 — KLM43 CKM20LP STCM11 KM40TSS32JMWLNL08 IWSN433 KLM46 CKM20LP STCM11 A94 WWW.WIDIA.COM
