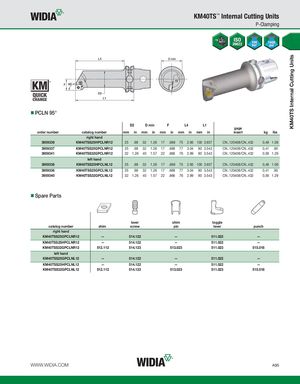

KM40TS Internal Cutting Units KM40TS™ Internal Cutting Units P-Clamping PCLN 95° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3959339 KM40TSS25HPCLNR12 25 .98 32 1.26 17 .669 75 2.95 100 3.937 CN..120408/CN..432 0,49 1.09 3959337 KM40TSS25GPCLNR12 25 .98 32 1.26 17 .669 77 3.04 90 3.543 CN..120408/CN..432 0,41 .90 3959341 KM40TSS32GPCLNR12 32 1.26 40 1.57 22 .866 76 2.99 90 3.543 CN..120408/CN..432 0,59 1.29 left hand 3959338 KM40TSS25HPCLNL12 25 .98 32 1.26 17 .669 75 2.95 100 3.937 CN..120408/CN..432 0,49 1.09 3959336 KM40TSS25GPCLNL12 25 .98 32 1.26 17 .669 77 3.04 90 3.543 CN..120408/CN..432 0,41 .90 3959340 KM40TSS32GPCLNL12 32 1.26 40 1.57 22 .866 76 2.99 90 3.543 CN..120408/CN..432 0,59 1.29 Spare Parts lever shim toggle catalog number shim screw pin lever punch right hand KM40TSS25GPCLNR12 — 514.122 — 511.022 — KM40TSS25HPCLNR12 — 514.122 — 511.022 — KM40TSS32GPCLNR12 512.112 514.123 513.023 511.023 515.018 left hand KM40TSS25GPCLNL12 — 514.122 — 511.022 — KM40TSS25HPCLNL12 — 514.122 — 511.022 — KM40TSS32GPCLNL12 512.112 514.123 513.023 511.023 515.018 WWW.WIDIA.COM A95
