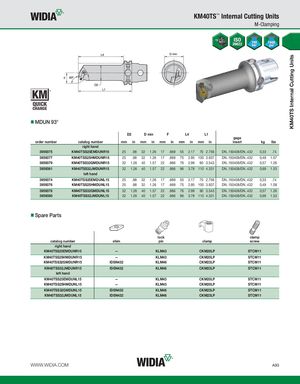

KM40TS Internal Cutting Units KM40TS™ Internal Cutting Units M-Clamping MDUN 93° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3959375 KM40TSS25EMDUNR15 25 .98 32 1.26 17 .669 55 2.17 70 2.756 DN..150408/DN..432 0,33 .74 3959377 KM40TSS25HMDUNR15 25 .98 32 1.26 17 .669 75 2.95 100 3.937 DN..150408/DN..432 0,49 1.07 3959379 KM40TSS32GMDUNR15 32 1.26 40 1.57 22 .866 76 2.99 90 3.543 DN..150408/DN..432 0,57 1.26 3959381 KM40TSS32JMDUNR15 32 1.26 40 1.57 22 .866 96 3.78 110 4.331 DN..150408/DN..432 0,69 1.53 left hand 3959374 KM40TSS25EMDUNL15 25 .98 32 1.26 17 .669 55 2.17 70 2.756 DN..150408/DN..432 0,33 .74 3959376 KM40TSS25HMDUNL15 25 .98 32 1.26 17 .669 75 2.95 100 3.937 DN..150408/DN..432 0,49 1.08 3959378 KM40TSS32GMDUNL15 32 1.26 40 1.57 22 .866 76 2.99 90 3.543 DN..150408/DN..432 0,57 1.26 3959380 KM40TSS32JMDUNL15 32 1.26 40 1.57 22 .866 96 3.78 110 4.331 DN..150408/DN..432 0,69 1.53 Spare Parts lock clamp catalog number shim pin clamp screw right hand KM40TSS25EMDUNR15 — KLM43 CKM20LP STCM11 KM40TSS25HMDUNR15 — KLM43 CKM20LP STCM11 KM40TSS32GMDUNR15 IDSN432 KLM46 CKM23LP STCM11 KM40TSS32JMDUNR15 IDSN432 KLM46 CKM23LP STCM11 left hand KM40TSS25EMDUNL15 — KLM43 CKM20LP STCM11 KM40TSS25HMDUNL15 — KLM43 CKM20LP STCM11 KM40TSS32GMDUNL15 IDSN432 KLM46 CKM23LP STCM11 KM40TSS32JMDUNL15 IDSN432 KLM46 CKM23LP STCM11 WWW.WIDIA.COM A93
