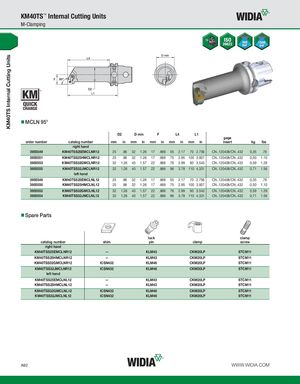

KM40TS Internal Cutting Units KM40TS™ Internal Cutting Units M-Clamping MCLN 95° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3955549 KM40TSS25EMCLNR12 25 .98 32 1.26 17 .669 55 2.17 70 2.756 CN..120408/CN..432 0,35 .76 3955551 KM40TSS25HMCLNR12 25 .98 32 1.26 17 .669 75 2.95 100 3.937 CN..120408/CN..432 0,50 1.10 3955553 KM40TSS32GMCLNR12 32 1.26 40 1.57 22 .866 76 2.99 90 3.543 CN..120408/CN..432 0,59 1.29 3955555 KM40TSS32JMCLNR12 32 1.26 40 1.57 22 .866 96 3.78 110 4.331 CN..120408/CN..432 0,71 1.56 left hand 3955548 KM40TSS25EMCLNL12 25 .98 32 1.26 17 .669 55 2.17 70 2.756 CN..120408/CN..432 0,35 .76 3955550 KM40TSS25HMCLNL12 25 .98 32 1.26 17 .669 75 2.95 100 3.937 CN..120408/CN..432 0,50 1.10 3955552 KM40TSS32GMCLNL12 32 1.26 40 1.57 22 .866 76 2.99 90 3.543 CN..120408/CN..432 0,59 1.29 3955554 KM40TSS32JMCLNL12 32 1.26 40 1.57 22 .866 96 3.78 110 4.331 CN..120408/CN..432 0,71 1.56 Spare Parts lock clamp catalog number shim pin clamp screw right hand KM40TSS25EMCLNR12 — KLM43 CKM20LP STCM11 KM40TSS25HMCLNR12 — KLM43 CKM20LP STCM11 KM40TSS32GMCLNR12 ICSN432 KLM46 CKM20LP STCM11 KM40TSS32JMCLNR12 ICSN432 KLM46 CKM20LP STCM11 left hand KM40TSS25EMCLNL12 — KLM43 CKM20LP STCM11 KM40TSS25HMCLNL12 — KLM43 CKM20LP STCM11 KM40TSS32GMCLNL12 ICSN432 KLM46 CKM20LP STCM11 KM40TSS32JMCLNL12 ICSN432 KLM46 CKM20LP STCM11 A92 WWW.WIDIA.COM
