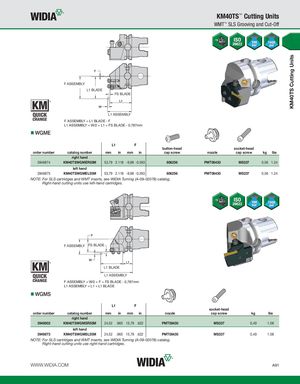

KM40TS Cutting Units KM40TS™ Cutting Units WMT™ SLS Grooving and Cut-Off F ASSEMBLY L1 BLADE FS BLADE L1 ASSEMBLY F ASSEMBLY = L1 BLADE - F L1 ASSEMBLY = W/2 + L1 + FS BLADE - 0,787mm WGME L1 F button-head socket-head order number catalog number mm in mm in cap screw nozzle cap screw kg lbs right hand 3949874 KM40TSWGMER55M 53,79 2.118 -9,98 -0.393 606256 PMT08430 MS337 0,56 1.24 left hand 3949875 KM40TSWGMEL55M 53,79 2.118 -9,98 -0.393 606256 PMT08430 MS337 0,56 1.24 NOTE: For SLS cartridges and WMT inserts, see WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use left-hand cartridges. F ASSEMBLY FS BLADE L1 BLADE L1 ASSEMBLY F ASSEMBLY = W/2 + F + FS BLADE - 0,787mm L1 ASSEMBLY = L1 + L1 BLADE WGMS L1 F socket-head order number catalog number mm in mm in nozzle cap screw kg lbs right hand 3949802 KM40TSWGMSR55M 24,52 .965 15,79 .622 PMT08430 MS337 0,49 1.08 left hand 3949873 KM40TSWGMSL55M 24,52 .965 15,79 .622 PMT08430 MS337 0,49 1.08 NOTE: For SLS cartridges and WMT inserts, see WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use right-hand cartridges. WWW.WIDIA.COM A91
