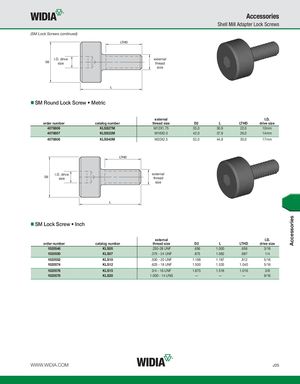

Shell Mill Adapter Lock Screws
(SM Lock Screws continued)
I.D. drive external size thread size
SM Round Lock Screw • Metric
| order number | catalog number | external thread size | D2 | L | LTHD | I.D. drive size |
| 4078806 | KLSS27M | M12X1.75 | 35,0 | 30,9 | 22,0 | 10mm |
| 4078807 | KLSS32M | M16X2.0 | 42,0 | 37,9 | 26,0 | 14mm |
| 4078808 | KLSS40M | M20X2.5 | 52,0 | 44,9 | 30,0 | 17mm |
I.D. drive external size thread size
SM Lock Screw • Inch
| order number | catalog number | external thread size | D2 | L | LTHD | I.D. drive size |
| 1020548 | KLS05 | .250-28 UNF | .656 | 1.000 | .656 | 3/16 |
| 1020550 | KLS07 | .375 - 24 UNF | .875 | 1.062 | .687 | 1/4 |
| 1020552 | KLS10 | .500 - 20 UNF | 1.188 | 1.187 | .812 | 5/16 |
| 1020574 | KLS12 | .625 - 18 UNF | 1.500 | 1.535 | 1.040 | 5/16 |
| 1020576 | KLS15 | 3/4 - 16 UNF | 1.875 | 1.516 | 1.016 | 3/8 |
| 1020578 | KLS20 | 1.000 - 14 UNS | — | — | — | 9/16 |
