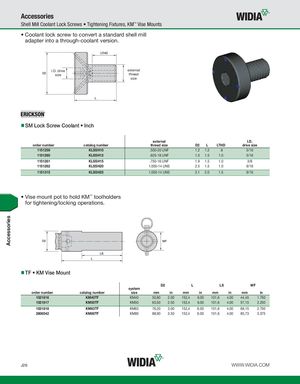

Shell Mill Coolant Lock Screws Tightening Fixtures, KM™ Vise Mounts
- Coolant lock screw to convert a standard shell mill adapter into a through-coolant version.
I.D. drive external size thread size
SM Lock Screw Coolant Inch
| order number | catalog number | external thread size | D2 | L | LTHD | I.D. drive size |
| 1151259 | KLSSH10 | .500-20 UNF | 1.2 | 1.2 | .8 | 5/16 |
| 1151260 | KLSSH12 | .625-18 UNF | 1.5 | 1.5 | 1.0 | 5/16 |
| 1151261 | KLSSH15 | .750-16 UNF | 1.9 | 1.5 | 1.0 | 3/8 |
| 1151262 | KLSSH20 | 1.000-14 UNS | 2.5 | 1.5 | 1.0 | 9/16 |
| 1151315 | KLSSH25 | 1.000-14 UNS | 3.1 | 2.0 | 1.5 | 9/16 |
- Vise mount pot to hold KM™ toolholders for tightening/locking operations.
TF KM Vise Mount
| order number | catalog number | system size | D2 mm | in | L mm | in | LS mm | in | W mm | F in |
| 1021816 | KM40TF | KM40 | 50,80 | 2.00 | 152,4 | 6.00 | 101,6 | 4.00 | 44,45 | 1.750 |
| 1021817 | KM50TF | KM50 | 63,50 | 2.50 | 152,4 | 6.00 | 101,6 | 4.00 | 57,15 | 2.250 |
| 1021818 | KM63TF | KM63 | 76,20 | 3.00 | 152,4 | 6.00 | 101,6 | 4.00 | 69,15 | 2.750 |
| 2606542 | KM80TF | KM80 | 88,90 | 3.50 | 152,4 | 6.00 | 101,6 | 4.00 | 85,73 | 3.375 |
