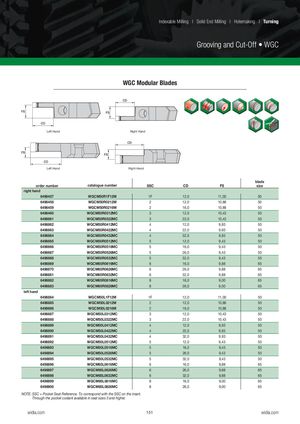

Grooving and Cut-Off • WGC
WGC Modular Blades
Left Hand Right Hand
Left Hand Right Hand
| order number | catalogue number | SSC | CD | FS | blade size |
| right hand | |||||
| 6498457 | WGCM50R1F12M | 1F | 12,0 | 11,00 | 50 |
| 6498458 | WGCM50R0212M | 2 | 12,0 | 10,88 | 50 |
| 6498459 | WGCM50R0216M | 2 | 16,0 | 10,88 | 50 |
| 6498460 | WGCM50R0312MC | 3 | 12,0 | 10,43 | 50 |
| 6498861 | WGCM50R0322MC | 3 | 22,0 | 10,43 | 50 |
| 6498862 | WGCM50R0412MC | 4 | 12,0 | 9,93 | 50 |
| 6498863 | WGCM50R0422MC | 4 | 22,0 | 9,93 | 50 |
| 6498864 | WGCM50R0432MC | 4 | 32,0 | 9,93 | 50 |
| 6498865 | WGCM50R0512MC | 5 | 12,0 | 9,43 | 50 |
| 6498866 | WGCM50R0516MC | 5 | 16,0 | 9,43 | 50 |
| 6498867 | WGCM50R0526MC | 5 | 26,0 | 9,43 | 50 |
| 6498868 | WGCM50R0532MC | 5 | 32,0 | 9,43 | 50 |
| 6498869 | WGCM65R0616MC | 6 | 16,0 | 9,88 | 65 |
| 6498870 | WGCM65R0626MC | 6 | 26,0 | 9,88 | 65 |
| 6498881 | WGCM65R0632MC | 6 | 32,0 | 9,88 | 65 |
| 6498882 | WGCM65R0816MC | 8 | 16,0 | 9,00 | 65 |
| 6498883 | WGCM65R0826MC | 8 | 26,0 | 9,00 | 65 |
| left hand | |||||
| 6498884 | WGCM50L1F12M | 1F | 12,0 | 11,00 | 50 |
| 6498885 | WGCM50L0212M | 2 | 12,0 | 10,88 | 50 |
| 6498886 | WGCM50L0216M | 2 | 16,0 | 10,88 | 50 |
| 6498887 | WGCM50L0312MC | 3 | 12,0 | 10,43 | 50 |
| 6498888 | WGCM50L0322MC | 3 | 22,0 | 10,43 | 50 |
| 6498889 | WGCM50L0412MC | 4 | 12,0 | 9,93 | 50 |
| 6498890 | WGCM50L0422MC | 4 | 22,0 | 9,93 | 50 |
| 6498891 | WGCM50L0432MC | 4 | 32,0 | 9,93 | 50 |
| 6498892 | WGCM50L0512MC | 5 | 12,0 | 9,43 | 50 |
| 6498893 | WGCM50L0516MC | 5 | 16,0 | 9,43 | 50 |
| 6498894 | WGCM50L0526MC | 5 | 26,0 | 9,43 | 50 |
| 6498895 | WGCM50L0532MC | 5 | 32,0 | 9,43 | 50 |
| 6498896 | WGCM65L0616MC | 6 | 16,0 | 9,88 | 65 |
| 6498897 | WGCM65L0626MC | 6 | 26,0 | 9,88 | 65 |
| 6498898 | WGCM65L0632MC | 6 | 32,0 | 9,88 | 65 |
| 6498899 | WGCM65L0816MC | 8 | 16,0 | 9,00 | 65 |
| 6498900 | WGCM65L0826MC | 8 | 26,0 | 9,00 | 65 |
NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the insert. Through the pocket coolant available in seat sizes 3 and higher.
