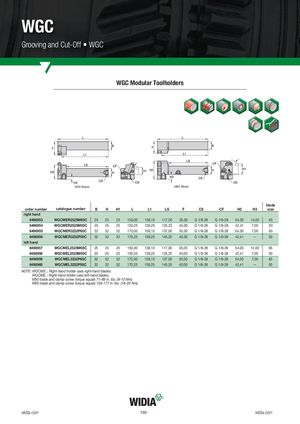

Grooving and Cut-Off • WGC
WGC Modular Toolholders
M50 Blade M65 Blade
blade
| order number | catalogue number | B | H | H1 | L | L1 | LS | F | CS | CF H2 | H3 | size | ||
| right hand | ||||||||||||||
| 6498953 | WGCMER2525M65C | 25 | 25 | 25 | 150,00 | 138,15 | 117,00 | 35,00 | G 1/8-28 | G 1/8-28 | 54,00 | 14,00 | 65 | |
| 6498954 | WGCMER2525M50C | 25 | 25 | 25 | 150,25 | 139,25 | 125,25 | 40,00 | G 1/8-28 | G 1/8-28 | 42,41 | 7,00 | 50 | |
| 6498955 | WGCMER3232P65C | 32 | 32 | 32 | 170,00 | 158,15 | 137,00 | 35,00 | G 1/8-28 | G 1/8-28 | 54,00 | 7,00 | 65 | |
| 6498956 | WGCMER3232P50C | 32 | 32 | 32 | 170,25 | 159,25 | 145,25 | 40,00 | G 1/8-28 | G 1/8-28 | 42,41 | — | 50 | |
| left hand | ||||||||||||||
| 6498957 | WGCMEL2525M65C | 25 | 25 | 25 | 150,00 | 138,15 | 117,00 | 35,00 | G 1/8-28 | G 1/8-28 | 54,00 | 14,00 | 65 | |
| 6498958 | WGCMEL2525M50C | 25 | 25 | 25 | 150,25 | 139,25 | 125,25 | 40,00 | G 1/8-28 | G 1/8-28 | 42,41 | 7,00 | 50 | |
| 6498959 | WGCMEL3232P65C | 32 | 32 | 32 | 170,00 | 158,15 | 137,00 | 35,00 | G 1/8-28 | G 1/8-28 | 54,00 | 7,00 | 65 | |
| 6498960 | WGCMEL3232P50C | 32 | 32 | 32 | 170,25 | 159,25 | 145,25 | 40,00 | G 1/8-28 | G 1/8-28 | 42,41 | — | 50 |
NOTE: WGCMS..: Right-hand holder uses right-hand blades. WGCME..: Right-hand holder uses left-hand blades. M50 blade and clamp screw torque equals 71–88 in. lbs. (8–10 Nm). M65 blade and clamp screw torque equals 159–177 in. lbs. (18–20 Nm).
