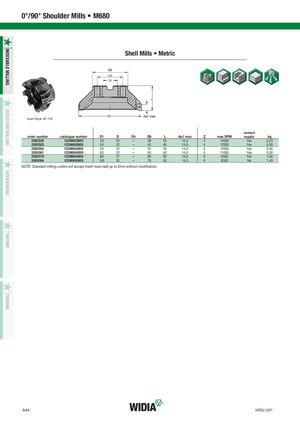

- Material Overview • DIN
Shell Mills • Metric
D4
Insert Style XP.T16
coolant
| order number | catalogue number | D1 | D | D4 | D6 | L | Ap1 max | Z | max RPM | supply | kg |
| 2003535 | 12396903600 | 40 | 22 | — | 39 | 45 | 15,3 | 4 | 14000 | Yes | 0,23 |
| 2003553 | 12396903800 | 50 | 22 | — | 42 | 40 | 14,0 | 4 | 12500 | Yes | 0,30 |
| 2003554 | 12396904000 | 50 | 22 | — | 42 | 40 | 14,0 | 5 | 12500 | Yes | 0,30 |
| 2003561 | 12396904200 | 63 | 22 | — | 50 | 40 | 14,0 | 5 | 11000 | Yes | 0,50 |
| 2003578 | 12396904600 | 80 | 27 | — | 60 | 50 | 14,0 | 6 | 9500 | Yes | 1,00 |
| 2003594 | 12396905000 | 100 | 32 | — | 78 | 50 | 14,0 | 8 | 8500 | No | 1,40 |
NOTE: Standard milling cutters will accept insert nose radii up to 2mm without modification.
