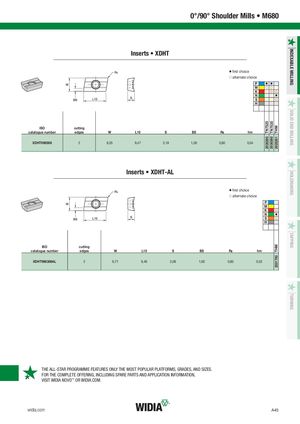

Inserts • XDHT
v first choice j alternate choice P v v M j j K j j N v S j H
ISO cutting
| catalogue number | edges | W | L10 | S | BS | Re | hm | |
| XDHT090308 | 2 | 6,35 | 9,47 | 3,18 | 1,00 | 0,80 | 0,04 |
Inserts • XDHT-AL
v first choice j alternate choice
P M K j N v S j H
ISO cutting
| catalogue number | edges | W | L10 | S | BS | Re | hm |
| XDHT090308AL | 2 | 6,71 | 9,46 | 3,08 | 1,00 | 0,80 | 0,02 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
