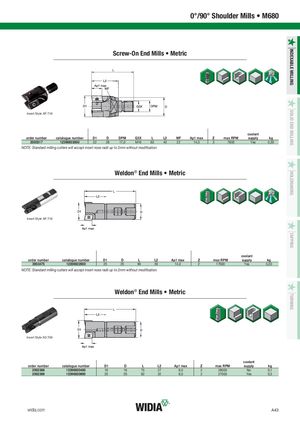

0°/90° Shoulder Mills • M680 INDEXABLE MILLING Screw-On End Mills • Metric SOLID END MILLING Insert Style XP.T16 coolant order number catalogue number D1 D DPM G3X L L2 WF Ap1 max Z max RPM supply kg 2003517 12396933000 32 28 17,0 M16 63 40 22 14,0 3 7800 Yes 0,30 NOTE: Standard milling cutters will accept insert nose radii up to 2mm without modification. Weldon® End Mills • Metric HOLEMAKING Insert Style XP.T16 TAPPING coolant order number catalogue number D1 D L L2 Ap1 max Z max RPM supply kg 2003475 12396922600 25 25 96 39 14,0 2 17600 Yes 0,30 NOTE: Standard milling cutters will accept insert nose radii up to 2mm without modification. Weldon® End Mills • Metric TURNING Insert Style XD.T09 coolant order number catalogue number D1 D L L2 Ap1 max Z max RPM supply kg 2002366 12396920400 16 16 75 27 9,0 2 28000 No 0,1 2002369 12396920600 20 20 82 32 9,0 2 27000 Yes 0,3 widia.com A43
