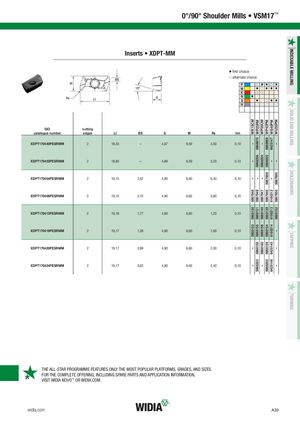

Inserts • XDPT-MM
| P M K N S H vfirst choi jalternate | j v j v v i ce choice | v v j v j v v v j j v v | |||||||
| ISO catalogue number | cutting edges | LI | BS | S | W | R e | hm | WK15CM WP25PM | WP35CM WP40PM WS40PM WU35PM |
| XDPT170440PESRMM XDPT170432PESRMM | 2 2 | 18,33 18,85 | — — | 4,87 4,89 | 9,59 9,59 | 4,00 3,20 | 0,10 0,10 | – 5988970 – 5988206 | – 5988969 6425147 – 5988204 5988205 – – |
| XDPT170404PESRMM | 2 | 19,15 | 2,52 | 4,90 | 9,60 | 0,40 | 0,10 | – – | – 5987689 – 5987690 |
| XDPT170408PESRMM | 2 | 19,15 | 2,15 | 4,90 | 9,60 | 0,80 | 0,10 | 5987948 5987949 | 5987947 5987946 6180212 5987950 |
| XDPT170412PESRMM XDPT170416PESRMM | 2 2 | 19,16 19,17 | 1,77 1,38 | 4,90 4,90 | 9,60 9,60 | 1,20 1,60 | 0,10 0,10 | 5988138 5988151 5988153 5988155 | 5988140 5988139 6180213 5988152 5988156 5988154 6180214 – |
| XDPT170420PESRMM | 2 | 19,17 | 0,99 | 4,90 | 9,60 | 2,00 | 0,10 | – 5988158 | 5988160 5988159 6425145 – |
| XDPT170424PESRMM | 2 | 19,17 | 0,62 | 4,90 | 9,60 | 2,40 | 0,10 | – 5988203 | – 5988202 6425146 – |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
