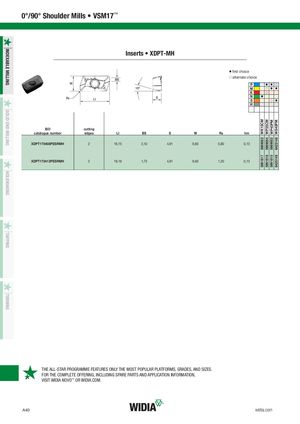

Inserts • XDPT-MH
v first choice j alternate choice P vvj M jvv K j N v S j v H
ISO cutting
| catalogue number | edges | LI | BS | S | W | Re | hm |
| XDPT170408PESRMH | 2 | 19,15 | 2,10 | 4,91 | 9,60 | 0,80 | 0,13 |
XDPT170412PESRMH 2 19,16 1,73 4,91 9,60 1,20 0,13
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
