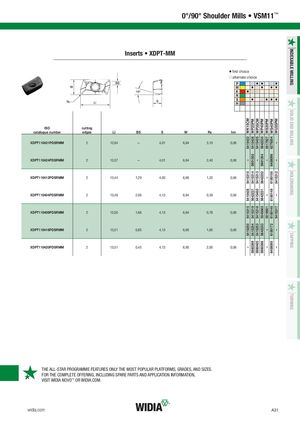

0°/90° Shoulder Mills • VSM11™ INDEXABLE MILLING Inserts • XDPT-MM v first choice j alternate choice P j v v j v M v j v v v K v j j N S v j v v v H SOLID END MILLING WK15CM WP35CM WU35PM WP25PM WP40PM WS30PM WS40PM ISO cutting catalogue number edges LI BS S W Re hm 5415422 5415426 5415425 5642234 5517827 6279204 XDPT110431PDSRMM 2 12,94 — 4,01 6,94 3,10 0,06 – 5901355 5901354 6408096 XDPT110424PDSRMM 2 13,37 — 4,01 6,94 2,40 0,06 – – – – HOLEMAKING 5415310 5415314 5415313 5642232 6180150 5415312 XDPT110412PDSRMM 2 13,44 1,29 4,00 6,90 1,20 0,06 – 5415428 5642237 5415450 5642231 6180149 XDPT110404PDSRMM 2 13,49 2,06 4,13 6,94 0,39 0,06 – – 5415315 5415319 5415318 5545063 5519921 6180148 5415317 XDPT110408PDSRMM 2 13,50 1,66 4,13 6,94 0,78 0,06 5415250 5415254 5415253 5642233 6180172 XDPT110416PDSRMM 2 13,51 0,85 4,13 6,95 1,60 0,06 – – TAPPING 5980399 5980400 5980398 6408095 XDPT110420PDSRMM 2 13,51 0,45 4,13 6,95 2,00 0,06 – – – TURNING THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM. widia.com A31
