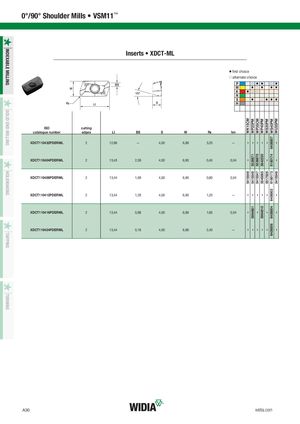

0°/90° Shoulder Mills • VSM11™ INDEXABLE MILLING Inserts • XDCT-ML v first choice j alternate choice P j v v j v M v j v v v K v j j N S v j v v v H SOLID END MILLING WK15CM WP35CM WU35PM WP25PM WP40PM WS30PM WS40PM ISO cutting catalogue number edges LI BS S W Re hm 6408007 XDCT110432PDERML 2 12,86 — 4,00 6,89 3,20 — – – – – – – 5536671 5536670 5642230 6180174 XDCT110404PDERML 2 13,43 2,09 4,00 6,90 0,40 0,04 – – – HOLEMAKING 5415549 5415548 5415547 5545065 5517826 6180173 5415546 XDCT110408PDERML 2 13,44 1,69 4,00 6,90 0,80 0,04 6408002 XDCT110412PDERML 2 13,44 1,29 4,00 6,90 1,20 — – – – – – – 5964861 5964810 6408004 XDCT110416PDERML 2 13,44 0,88 4,00 6,89 1,60 0,04 – – – – 6408006 XDCT110424PDERML 2 13,44 0,16 4,00 6,88 2,40 — – – – – – – TAPPING TURNING A30 widia.com
