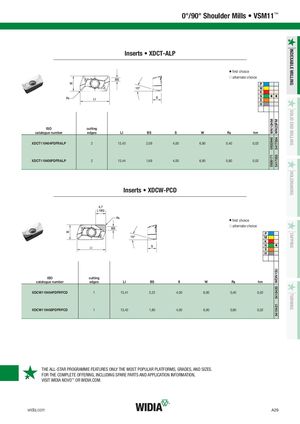

Inserts • XDCT-ALP
v first choice j alternate choice P M K N v v S H
ISO cutting
| catalogue number | edges | LI | BS | S | W | Re | hm |
| XDCT110404PDFRALP | 2 | 13,43 | 2,09 | 4,00 | 6,90 | 0,40 | 0,02 |
XDCT110408PDFRALP 2 13,44 1,69 4,00 6,90 0,80 0,02
Inserts • XDCW-PCD
v first choice j alternate choice
LI
P M K N v S H
ISO cutting
| catalogue number | edges | LI | BS | S | W | Re | hm |
| XDCW110404PDFRPCD | 1 | 13,41 | 2,22 | 4,00 | 6,90 | 0,40 | 0,02 |
XDCW110408PDFRPCD 1 13,42 1,80 4,00 6,90 0,80 0,02
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
