- Material Overview • DIN

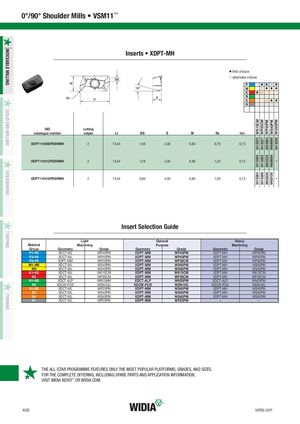

Inserts • XDPT-MH
v first choice j alternate choice P vvjv M jvvv K v j N S jvv H
ISO cutting
| catalogue number | edges | LI | BS | S | W | Re | hm |
| XDPT110408PDSRMH | 2 | 13,44 | 1,68 | 4,00 | 6,90 | 0,79 | 0,13 |
XDPT110412PDSRMH 2 13,44 1,29 4,00 6,90 1,20 0,13
XDPT110416PDSRMH 2 13,44 0,90 4,00 6,90 1,59 0,13
Insert Selection Guide
| Material | Lig Mach | ht ining | Gen Pur | eral pose | Hea Machi | vy ning | ||
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade | ||
| P1–P2 | XDCT-ML | WP40PM | XDPT-MM | WP40PM | XDPT-MH | WP40PM | ||
| P3–P4 | XDCT-ML | WP40PM | XDPT-MM | WP40PM | XDPT-MH | WP40PM | ||
| P5–P6 | XDPT-MM | WP25PM | XDPT-MM | WP35CM | XDPT-MH | WP40PM | ||
| M1–M2 | XDCT-ML | WS40PM | XDPT-MM | WS40PM | XDPT-MH | WS40PM | ||
| M3 | XDCT-ML | WS40PM | XDPT-MM | WS40PM | XDPT-MH | WS40PM | ||
| K1–K2 | XDCT-ML | WK15CM | XDPT-MM | WK15CM | XDPT-MH | WK15CM | ||
| K3 | XDCT-ML | WP35CM | XDPT-MM | WP35CM | XDPT-MH | WP35CM | ||
| N1–N2 | XDCT-ALP | WN10HM | XDCT-ALP | WN25PM | XDCT-ALP | WN25PM | ||
| N3 | XDCW-PCD | WDN10U | XDCW-PCD | WDN10U | XDCW-PC | D | WDN10U | |
| S1–S2 | XDCT-ML | WP25PM | XDPT-MM | WS40PM | XDPT-MH | WS40PM | ||
| S3 | XDCT-ML | WS40PM | XDPT-MM | WS40PM | XDPT-MH | WS40PM | ||
| S4 | XDCT-ML | WS40PM | XDPT-MM | WS40PM | XDPT-MH | WS40PM | ||
| H1 | XDCT-ML | WP25PM | XDPT-MM | WP25PM | – | – |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
