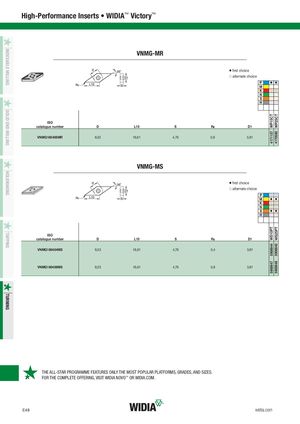

VNMG-MR
v first choice j alternate choice P v v M K j j N S H
ISO
| catalogue number | D | L10 | S | Re | D1 |
| VNMG160408MR | 9,53 | 16,61 | 4,76 | 0,8 | 3,81 |
VNMG-MS
v first choice j alternate choice
| P | j j |
| M | v v |
| K | j j |
| N | j j |
| S | v v |
H
ISO
| catalogue number | D | L10 | S | Re | D1 |
| VNMG160404MS | 9,53 | 16,61 | 4,76 | 0,4 | 3,81 |
VNMG160408MS 9,53 16,61 4,76 0,8 3,81
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
