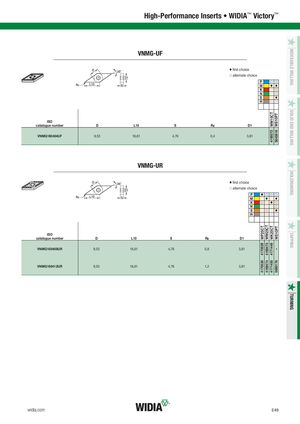

VNMG-UF
v first choice j alternate choice
| P | j j | |
| M | v v | |
| K | j | |
| N | j | |
| S | v |
H
ISO
| catalogue number | D | L10 | S | Re | D1 |
| VNMG160404UF | 9,53 | 16,61 | 4,76 | 0,4 | 3,81 |
VNMG-UR
v first choice j alternate choice P vjjj
M v v
| K | j | v j | |
| N | j |
S j v
H
ISO
| catalogue number | D | L10 | S | Re | D1 |
| VNMG160408UR | 9,53 | 16,61 | 4,76 | 0,8 | 3,81 |
VNMG160412UR 9,53 16,61 4,76 1,2 3,81
