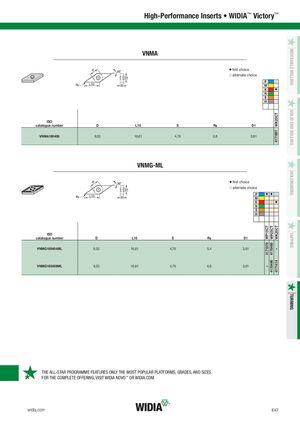

VNMA
v first choice j alternate choice
P j M K v N S H
ISO
| catalogue number | D | L10 | S | Re | D1 |
| VNMA160408 | 9,53 | 16,61 | 4,76 | 0,8 | 3,81 |
VNMG-ML
v first choice j alternate choice P vvj M K jjv N S H
ISO
| catalogue number | D | L10 | S | Re | D1 |
| VNMG160404ML | 9,53 | 16,61 | 4,76 | 0,4 | 3,81 |
VNMG160408ML 9,53 16,61 4,76 0,8 3,81
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
