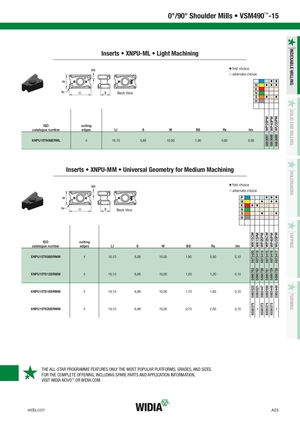

0°/90° Shoulder Mills • VSM490™-15 INDEXABLE MILLING Inserts • XNPU-ML • Light Machining v first choice j alternate choice j v v M v v v K j Back View N S v j v H SOLID END MILLING 5883099 WU35PM 5883097 WP25PM 5883098 WP40PM ISO cutting catalogue number edges LI S W BS Re hm XNPU15T608ERML 4 16,10 6,88 10,00 1,90 0,80 0,08 Inserts • XNPU-MM • Universal Geometry for Medium Machining HOLEMAKING v first choice j alternate choice P j v v v M v j v v K v v j j Back View N S v j v H WK15CM WP35CM WU35PM TAPPING WK15PM WP25PM WP40PM ISO cutting catalogue number edges LI S W BS Re hm 5873420 5873419 5873415 5873418 5873416 5873417 XNPU15T608SRMM 4 16,10 6,88 10,00 1,90 0,80 0,10 5890763 5890762 5890728 5890761 5890729 5890730 XNPU15T612SRMM 4 16,10 6,88 10,00 1,50 1,20 0,10 5883522 5883521 5883447 5883450 5883448 5883449 XNPU15T616SRMM 4 16,10 6,88 10,00 1,10 1,60 0,10 TURNING 6030375 6030372 6030374 6030373 XNPU15T620SRMM 4 16,10 6,88 10,00 0,70 2,00 0,10 – – THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM. widia.com A23
