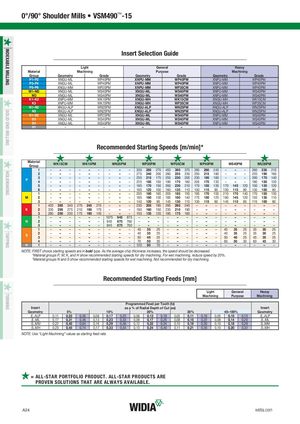

Insert Selection Guide
| Material | Lig Mach | ht ining | Gen Purp | eral ose | Heavy Machining | ||
| Group | Geometry | Grade | Geometry | Grade | Geometr | y Grade | |
| P1–P2 | XNGU-ML | WP40PM | XNPU-MM | WP40PM | XNPU-MM | WP40PM | |
| P3–P4 | XNGU-ML | WP40PM | XNPU-MM | WP40PM | XNPU-MM | WP40PM | |
| P5–P6 | XNGU-MM | WP25PM | XNPU-MM | WP35CM | XNPU-MM | WP40PM | |
| M1–M2 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM | |
| M3 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM | |
| K1–K2 | XNPU-MM | WK15PM | XNGU-MH | WK15CM | XNGU-M | H WK15CM | |
| K3 | XNPU-MM | WK15PM | XNGU-MH | WP35CM | XNGU-M | H WP35CM | |
| N1–N2 | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM | XNGU-AL | P WN25PM | |
| N3 | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM | XNGU-AL | P WN25PM | |
| S1–S2 | XNGU-ML | WP25PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM | |
| S3 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM | |
| S4 H1 | XNGU-ML – | WS40PM – | XNGU-ML – | WS40PM – | XNPU-MM – | WS40PM – |
Recommended Starting Speeds [m/min]*
| Material Group | W | K15 | CM | W | K15P | M | W | N25P | M | W | P25P | M | W | P35C | M | WP40P | M | W | S40P | M | W | U35P | M | |
| 1 | – | – | – | – | – | – | – | – | – | 330 | 285 | 270 | 455 | 395 | 370 | 295 | 260 | 245 | – | – | – | 260 | 230 | 215 |
| 2 | – | – | – | – | – | – | – | – | – | 275 | 240 | 200 | 280 | 255 | 230 | 250 | 215 | 180 | – | – | – | 220 | 190 | 160 |
| P 3 | – | – | – | – | – | – | – | – | – | 255 | 215 | 175 | 255 | 230 | 205 | 230 | 195 | 160 | – | – | – | 200 | 170 | 140 |
| 4 | – | – | – | – | – | – | – | – | – | 225 | 185 | 150 | 190 | 175 | 160 | 205 | 170 | 135 | – | – | – | 180 | 150 | 120 |
| 5 | – | – | – | – | – | – | – | – | – | 185 | 170 | 150 | 260 | 230 | 210 | 170 | 155 | 135 | 170 | 145 | 120 | 150 | 135 | 120 |
| 6 | – | – | – | – | – | – | – | – | – | 165 | 125 | 100 | 160 | 135 | 110 | 150 | 115 | 90 | 150 | 110 | 80 | 130 | 100 | 80 |
| 1 | – | – | – | – | – | – | – | – | – | 205 | 180 | 165 | 205 | 185 | 155 | 195 | 170 | 155 | 210 | 170 | 140 | 170 | 150 | 135 |
| M 2 | – | – | – | – | – | – | – | – | – | 185 | 160 | 130 | 185 | 160 | 140 | 175 | 150 | 125 | 180 | 145 | 120 | 155 | 130 | 110 |
| 3 | – | – | – | – | – | – | – | – | – | 140 | 120 | 95 | 145 | 130 | 115 | 130 | 115 | 90 | 145 | 110 | 85 | 115 | 100 | 80 |
| 1 | 420 | 385 | 340 | 270 | 245 | 215 | – | – | – | 230 | 205 | 185 | 295 | 265 | 240 | – | – | – | – | – | – | – | – | – |
| K 2 | 335 | 295 | 275 | 210 | 190 | 175 | – | – | – | 180 | 160 | 150 | 235 | 210 | 190 | – | – | – | – | – | – | – | – | – |
| 3 | 280 | 250 | 230 | 175 | 160 | 145 | – | – | – | 150 | 135 | 120 | 195 | 175 | 160 | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | 1075 | 945 | 875 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 |
| S 2 | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 |
| 3 | – | – | – | – | – | – | – | – | – | 50 | 40 | 25 | – | – | – | – | – | – | 50 | 40 | 25 | 45 | 35 | 25 |
| 4 | – | – | – | – | – | – | – | – | – | 70 | 50 | 35 | – | – | – | – | – | – | 60 | 50 | 30 | 60 | 45 | 30 |
| H 1 | – | – | – | – | – | – | – | – | – | 120 | 90 | 70 | – | – | – | – | – | – | – | – | – | – | – | – |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased. *Material groups P, M, K, and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. *Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining.
Recommended Starting Feeds [mm]
| Lig Mach | ht ining | Gen Purp | eral ose | Heavy Machining | ||||||||||||
| Insert Geometry | 5% | 10% | Pro as a | gramme % of Ra | dFeedp dial Dept 20% | er Tooth h of Cut | (fz) (ae) | 30% | 40–100% | Insert Geometry | ||||||
| .E..ALP | 0,11 | 0,23 | 0,35 | 0,08 | 0,17 | 0,25 | 0,06 | 0,13 | 0,19 | 0,05 | 0,11 | 0,16 | 0,05 | 0,10 | 0,15 | .E..ALP |
| .E..ML | 0,17 | 0,31 | 0,46 | 0,13 | 0,23 | 0,33 | 0,09 | 0,17 | 0,25 | 0,08 | 0,15 | 0,22 | 0,08 | 0,14 | 0,20 | .E..ML |
| .S..MM | 0,22 | 0,40 | 0,64 | 0,16 | 0,29 | 0,46 | 0,12 | 0,22 | 0,34 | 0,10 | 0,19 | 0,30 | 0,10 | 0,18 | 0,28 | .S..MM |
| .S..MH | 0,23 | 0,45 | 0,74 | 0,17 | 0,33 | 0,54 | 0,13 | 0,24 | 0,40 | 0,11 | 0,21 | 0,35 | 0,10 | 0,20 | 0,32 | .S..MH |
NOTE: Use “Light Machining” values as starting feed rate.
= ALL-STAR PORTFOLIO PRODUCT. ALL-STAR PRODUCTS ARE
PROVEN SOLUTIONS THAT ARE ALWAYS AVAILABLE.
