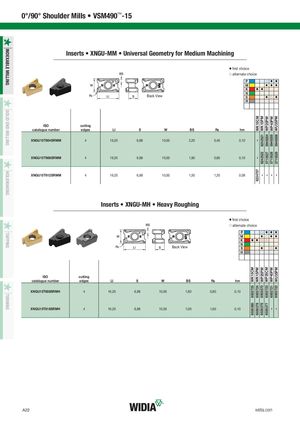

0°/90° Shoulder Mills • VSM490™-15 INDEXABLE MILLING Inserts • XNGU-MM • Universal Geometry for Medium Machining v first choice j alternate choice P j v v M v v v K v v j N Back View S v j v H SOLID END MILLING WK15CM WU35PM WK15PM WP25PM WP40PM ISO cutting catalogue number edges LI S W BS Re hm 6242521 5949204 5949205 5949206 XNGU15T604SRMM 4 16,20 6,88 10,00 2,20 0,40 0,10 – 6242522 5710527 5710528 5710529 XNGU15T608SRMM 4 16,20 6,88 10,00 1,90 0,80 0,10 – 6234707 HOLEMAKING XNGU15T612SRMM 4 16,20 6,88 10,00 1,50 1,20 0,08 – – – – Inserts • XNGU-MH • Heavy Roughing v first choice j alternate choice P j v v v TAPPING M v j v v K v v j j N Back View S v j v H WK15CM WP35CM WU35PM WK15PM WP25PM WP40PM ISO cutting catalogue number edges LI S W BS Re hm 6003725 6003724 6003570 6003723 6003721 6003722 XNGU15T608SRMH 4 16,20 6,88 10,00 1,80 0,80 0,10 TURNING 6030380 6030378 6030376 6030377 XNGU15T616SRMH 4 16,20 6,88 10,00 1,00 1,60 0,10 – – A22 widia.com
