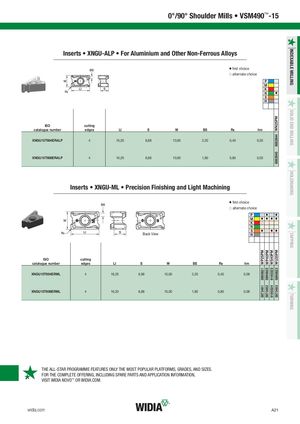

Inserts • XNGU-ALP • For Aluminium and Other Non-Ferrous Alloys
v first choice j alternate choice
P M K N v S H
ISO cutting
| catalogue number | edges | LI | S | W | BS | Re | hm |
| XNGU15T604ERALP | 4 | 16,20 | 6,88 | 10,00 | 2,20 | 0,40 | 0,03 |
XNGU15T608ERALP 4 16,20 6,88 10,00 1,80 0,80 0,03
Inserts • XNGU-ML • Precision Finishing and Light Machining
v first choice j alternate choice
| P | jvjv |
| M | vvvv |
| K | j |
| N | |
| S | vjvv |
Back View H
ISO cutting
| catalogue number | edges | LI | S | W | BS | Re | hm |
| XNGU15T604ERML | 4 | 16,20 | 6,88 | 10,00 | 2,20 | 0,40 | 0,08 |
XNGU15T608ERML 4 16,20 6,88 10,00 1,80 0,80 0,08
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
