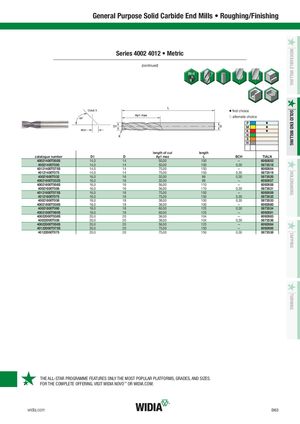

Series 4002 4012 • Metric
(continued)
Detail X v first choice j alternate choice P v M v K v N S H length of cut length
| catalogue number | D1 | D | Ap1 max | L | BCH | TIALN |
| 40021400T050S | 14,0 | 14 | 50,00 | 100 | — | 6092653 |
| 40021400T050 | 14,0 | 14 | 50,00 | 100 | 0,30 | 5873518 |
| 40121400T075S | 14,0 | 14 | 75,00 | 150 | — | 6092654 |
| 40121400T075 | 14,0 | 14 | 75,00 | 150 | 0,30 | 5873519 |
| 40021600T032 | 16,0 | 16 | 32,00 | 89 | 0,30 | 5873520 |
| 40021600T032S | 16,0 | 16 | 32,00 | 89 | — | 6092657 |
| 40021600T056S | 16,0 | 16 | 56,00 | 110 | — | 6092658 |
| 40021600T056 | 16,0 | 16 | 56,00 | 110 | 0,30 | 5873531 |
| 40121600T075S | 16,0 | 16 | 75,00 | 150 | — | 6092659 |
| 40121600T075 | 16,0 | 16 | 75,00 | 150 | 0,30 | 5873532 |
| 40021800T038 | 18,0 | 18 | 38,00 | 100 | 0,30 | 5873533 |
| 40021800T038S | 18,0 | 18 | 38,00 | 100 | — | 6092660 |
| 40021800T060 | 18,0 | 18 | 60,00 | 125 | 0,30 | 5873534 |
| 40021800T060S | 18,0 | 18 | 60,00 | 125 | — | 6092681 |
| 40022000T038S | 20,0 | 20 | 38,00 | 104 | — | 6092683 |
| 40022000T038 | 20,0 | 20 | 38,00 | 104 | 0,30 | 5873536 |
| 40022000T056S | 20,0 | 20 | 56,00 | 125 | — | 6092684 |
| 40122000T075S | 20,0 | 20 | 75,00 | 150 | — | 6092685 |
| 40122000T075 | 20,0 | 20 | 75,00 | 150 | 0,30 | 5873538 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO™ OR WIDIA.COM.
