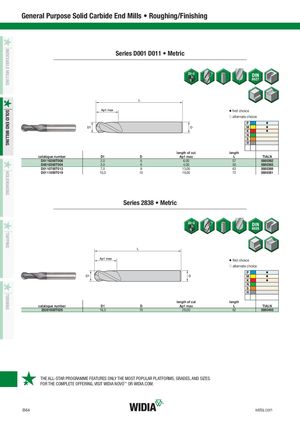

Каталог Widia all star 2020 - страница 186
Навигация
Каталог Widia техническое руководство по разверткам
Каталог Widia достижения 2020
Каталог Widia инструмент для обработки отверстий 2017
Каталог Widia монолитный инструмент 2017
Каталог Widia цельные концевые фрезы- TABLE OF CONTENTS
- INDEXABLE MILLING
- 0º/90º SHOULDER MILLS
- 90° HIGH-SPEED CUTTING MILLS
- FACE MILLS
- HIGH-FEED MILLS
- COPY MILLS
- SOLID END MILLING
- HIGH-PERFORMANCE SOLID CARBIDE END MILLS
- GENERAL PURPOSE SOLID CARBIDE END MILLS
- HOLEMAKING
- SOLID CARBIDE DRILLS
- MODULAR DRILLS
- INDEXABLE DRILLS
- TAPPING
- TURNING
- HIGH-PERFORMANCE INSERTS
- GROOVING & CUT-OFF
- Informational Icons Guide
- Material Overview • DIN
Series D001 D011 • Metric
v first choice j alternate choice P v M v K v N S H length of cut length
| catalogue number | D1 | D | Ap1 max | L | TIALN |
| D0110200T006 | 2,0 | 6 | 6,00 | 57 | 5880362 |
| D0010300T004 | 3,0 | 6 | 4,00 | 50 | 5880363 |
| D0110700T013 | 7,0 | 8 | 13,00 | 63 | 5880369 |
| D0111000T019 | 10,0 | 10 | 19,00 | 72 | 5880381 |
Series 2838 • Metric
v first choice j alternate choice P v M v K v N S H length of cut length
| catalogue number | D1 | D | Ap1 max | L | TIALN |
| 28381600T026 | 16,0 | 16 | 26,00 | 92 | 5880460 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
