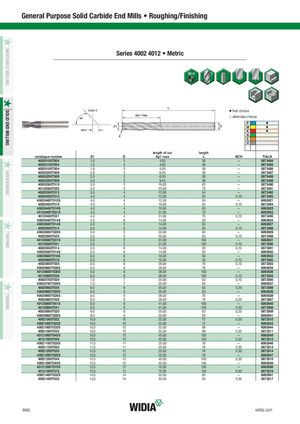

Каталог Widia all star 2020 - страница 184
Навигация
Каталог Widia техническое руководство по разверткам
Каталог Widia достижения 2020
Каталог Widia инструмент для обработки отверстий 2017
Каталог Widia монолитный инструмент 2017
Каталог Widia цельные концевые фрезы- TABLE OF CONTENTS
- INDEXABLE MILLING
- 0º/90º SHOULDER MILLS
- 90° HIGH-SPEED CUTTING MILLS
- FACE MILLS
- HIGH-FEED MILLS
- COPY MILLS
- SOLID END MILLING
- HIGH-PERFORMANCE SOLID CARBIDE END MILLS
- GENERAL PURPOSE SOLID CARBIDE END MILLS
- HOLEMAKING
- SOLID CARBIDE DRILLS
- MODULAR DRILLS
- INDEXABLE DRILLS
- TAPPING
- TURNING
- HIGH-PERFORMANCE INSERTS
- GROOVING & CUT-OFF
- Informational Icons Guide
- Material Overview • DIN
Series 4002 4012 • Metric
Detail X v first choice j alternate choice P v M v K v N S H length of cut length
| catalogue number | D1 | D | Ap1 max | L | BCH | TIALN |
| 40020100T004 | 1,0 | 3 | 4,00 | 38 | — | 5873484 |
| 40020150T004 | 1,5 | 3 | 4,00 | 38 | — | 5873485 |
| 40020180T004 | 1,8 | 3 | 4,00 | 38 | — | 5873486 |
| 40020200T006 | 2,0 | 3 | 6,30 | 38 | — | 5873487 |
| 40020250T006 | 2,5 | 3 | 6,30 | 38 | — | 5873488 |
| 40020300T009 | 3,0 | 3 | 9,50 | 38 | — | 5873489 |
| 40020300T019 | 3,0 | 3 | 19,00 | 63 | — | 5873490 |
| 40120300T025 | 3,0 | 3 | 25,00 | 75 | — | 5873491 |
| 40020350T012 | 3,5 | 4 | 12,00 | 54 | — | 5873492 |
| 40020400T012 | 4,0 | 4 | 12,00 | 50 | 0,10 | 5873493 |
| 40020400T012S | 4,0 | 4 | 12,00 | 50 | — | 6092621 |
| 40020400T019 | 4,0 | 4 | 19,00 | 63 | 0,10 | 5873494 |
| 40020400T019S | 4,0 | 4 | 19,00 | 63 | — | 6092622 |
| 40120400T031S | 4,0 | 4 | 31,00 | 75 | — | 6092623 |
| 40120400T031 | 4,0 | 4 | 31,00 | 75 | 0,10 | 5873495 |
| 40020450T014S | 4,5 | 6 | 14,00 | 50 | — | 6092624 |
| 40020500T014S | 5,0 | 5 | 14,00 | 50 | — | 6092627 |
| 40020500T014 | 5,0 | 5 | 14,00 | 50 | 0,10 | 5873498 |
| 40020500T020S | 5,0 | 5 | 20,00 | 63 | — | 6092628 |
| 40020500T020 | 5,0 | 5 | 20,00 | 63 | 0,10 | 5873499 |
| 40120500T031S | 5,0 | 5 | 31,00 | 100 | — | 6092631 |
| 40120500T031 | 5,0 | 5 | 31,00 | 100 | 0,10 | 5873500 |
| 40020550T014 | 5,5 | 6 | 14,00 | 50 | 0,10 | 5873501 |
| 40020550T014S | 5,5 | 6 | 14,00 | 50 | — | 6092632 |
| 40020600T016S | 6,0 | 6 | 16,00 | 50 | — | 6092633 |
| 40020600T016 | 6,0 | 6 | 16,00 | 50 | 0,10 | 5873502 |
| 40020600T028 | 6,0 | 6 | 28,00 | 76 | 0,10 | 5873503 |
| 40020600T028S | 6,0 | 6 | 28,00 | 76 | — | 6092634 |
| 40120600T038S | 6,0 | 6 | 38,00 | 100 | — | 6092636 |
| 40120600T038 | 6,0 | 6 | 38,00 | 100 | 0,10 | 5873504 |
| 40020700T020 | 7,0 | 7 | 20,00 | 63 | 0,10 | 5873505 |
| 40020700T020S | 7,0 | 7 | 20,00 | 63 | — | 6092637 |
| 40020800T020 | 8,0 | 8 | 20,00 | 63 | 0,20 | 5873506 |
| 40020800T020S | 8,0 | 8 | 20,00 | 63 | — | 6092638 |
| 40020800T028S | 8,0 | 8 | 28,00 | 76 | — | 6092639 |
| 40020800T028 | 8,0 | 8 | 28,00 | 76 | 0,20 | 5873507 |
| 40120800T041S | 8,0 | 8 | 41,00 | 100 | — | 6092640 |
| 40120800T041 | 8,0 | 8 | 41,00 | 100 | 0,20 | 5873508 |
| 40020900T020 | 9,0 | 9 | 20,00 | 63 | 0,20 | 5873509 |
| 40020900T020S | 9,0 | 9 | 20,00 | 63 | — | 6092641 |
| 40021000T022 | 10,0 | 10 | 22,00 | 72 | 0,20 | 5873510 |
| 40021000T022S | 10,0 | 10 | 22,00 | 72 | — | 6092643 |
| 40021000T032S | 10,0 | 10 | 32,00 | 89 | — | 6092644 |
| 40021000T032 | 10,0 | 10 | 32,00 | 89 | 0,20 | 5873511 |
| 40121000T045S | 10,0 | 10 | 45,00 | 100 | — | 6092645 |
| 40121000T045 | 10,0 | 10 | 45,00 | 100 | 0,20 | 5873512 |
| 40021100T025S | 11,0 | 11 | 25,00 | 76 | — | 6092646 |
| 40021100T025 | 11,0 | 11 | 25,00 | 76 | 0,30 | 5873513 |
| 40021200T025 | 12,0 | 12 | 25,00 | 76 | 0,30 | 5873514 |
| 40021200T025S | 12,0 | 12 | 25,00 | 76 | — | 6092647 |
| 40021200T045 | 12,0 | 12 | 45,00 | 100 | 0,30 | 5873515 |
| 40021200T045S | 12,0 | 12 | 45,00 | 100 | — | 6092648 |
| 40121200T075S | 12,0 | 12 | 75,00 | 150 | — | 6092650 |
| 40121200T075 | 12,0 | 12 | 75,00 | 150 | 0,30 | 5873516 |
| 40021400T032S | 14,0 | 14 | 32,00 | 83 | — | 6092651 |
| 40021400T032 | 14,0 | 14 | 32,00 | 83 | 0,30 | 5873517 |
