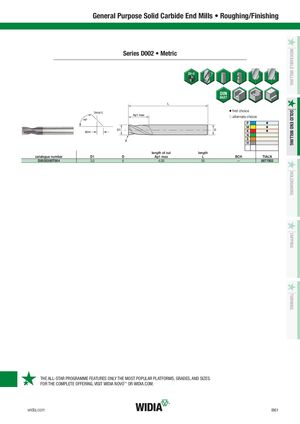

Series D002 • Metric
v first choice Detail X j alternate choice P v M v K v N S H length of cut length
| catalogue number | D1 | D | Ap1 max | L | BCH | TIALN |
| D0020300T004 | 3,0 | 6 | 4,00 | 50 | — | 5877503 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
