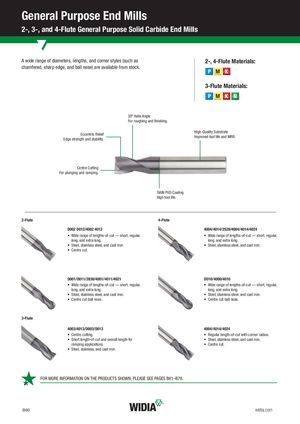

General Purpose End Mills 2-, 3-, and 4-Flute General Purpose Solid Carbide End Mills A wide range of diameters, lengths, and corner styles (such as 2-, 4-Flute Materials: chamfered, sharp edge, and ball nose) are available from stock. P M K 3-Flute Materials: P M K N 30º Helix Angle For roughing and finishing. Eccentric ReliefEdge strength and stability. High-Quality SubstrateImproved tool life and MRR. Centre Cutting For plunging and ramping. TiAlN PVD Coating High tool life. 2-Flute 4-Flute D002 D012/4002 4012 4004/4014/2528/4004/4014/4024 • Wide range of lengths-of-cut — short, regular, • Wide range of lengths-of-cut — short, regular, long, and extra long.  long, and extra long.  • Steel, stainless steel, and cast iron.  • Steel, stainless steel, and cast iron.  • Centre cut.  D001/D011/2838/4001/4011/4021 D010/4000/4010 • Wide range of lengths-of-cut — short, regular, • Wide range of lengths-of-cut — short, regular, long, and extra long.  long, and extra long.  • Steel, stainless steel, and cast iron.  • Steel, stainless steel, and cast iron.  • Centre cut ball nose.  • Centre cut ball nose.  3-Flute 4003/4013/D003/D013 4004/4014/4024 • Centre cutting.  • Regular length-of-cut with corner radius.  • Short length-of-cut and overall length for • Steel, stainless steel, and cast iron.  ramping applications.  • Centre cut.  • Steel, stainless, and cast iron.  FOR MORE INFORMATION ON THE PRODUCTS SHOWN, PLEASE SEE PAGES B61–B78. B60 widia.com
