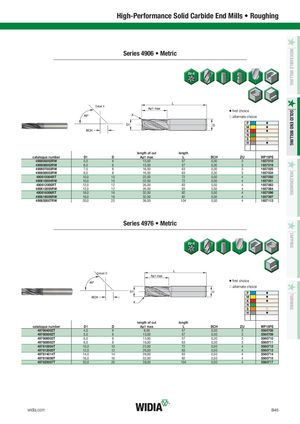

Series 4906 • Metric
Detail X v first choice j alternate choice
| P | v | ||||||||
| M | v | ||||||||
| K | v | ||||||||
| N | |||||||||
| S | j | ||||||||
| H | v | ||||||||
| length of cut | length | ||||||||
| catalogue number | D1 | D | Ap1 max | L | BCH | ZU | WP15PE | ||
| 490605002RW | 5,0 | 6 | 13,00 | 57 | 0,30 | 3 | 1657010 | ||
| 490606002RW | 6,0 | 6 | 13,00 | 57 | 0,30 | 3 | 1657019 | ||
| 490607003RW | 7,0 | 8 | 16,00 | 63 | 0,30 | 3 | 1657025 | ||
| 490608003RW | 8,0 | 8 | 16,00 | 63 | 0,30 | 3 | 1657034 | ||
| 490610004RT | 10,0 | 10 | 22,00 | 72 | 0,50 | 4 | 1657050 | ||
| 490610004RW | 10,0 | 10 | 22,00 | 72 | 0,50 | 4 | 1657051 | ||
| 490612005RT | 12,0 | 12 | 26,00 | 83 | 0,50 | 4 | 1657063 | ||
| 490612005RW | 12,0 | 12 | 26,00 | 83 | 0,50 | 4 | 1657064 | ||
| 490616006RT | 16,0 | 16 | 32,00 | 92 | 0,50 | 4 | 1657096 | ||
| 490616006RW | 16,0 | 16 | 32,00 | 92 | 0,50 | 4 | 1657097 | ||
| 490620007RW | 20,0 | 20 | 38,00 | 104 | 0,50 | 4 | 1657113 |
Series 4976 • Metric
Detail X v first choice j alternate choice
| P | v | ||||||||
| M | v | ||||||||
| K | v | ||||||||
| N | |||||||||
| S | j | ||||||||
| H | v | ||||||||
| length of cut | length | ||||||||
| catalogue number | D1 | D | Ap1 max | L | BCH | ZU | WP15PE | ||
| 497604002T | 4,0 | 6 | 8,00 | 57 | 0,30 | 3 | 5560708 | ||
| 497605002T | 5,0 | 6 | 13,00 | 57 | 0,30 | 3 | 5560709 | ||
| 497606002T | 6,0 | 6 | 13,00 | 57 | 0,30 | 3 | 5560710 | ||
| 497608003T | 8,0 | 8 | 16,00 | 63 | 0,30 | 3 | 5560711 | ||
| 497610004T | 10,0 | 10 | 22,00 | 72 | 0,50 | 4 | 5560712 | ||
| 497612005T | 12,0 | 12 | 26,00 | 83 | 0,50 | 4 | 5560713 | ||
| 497614014T | 14,0 | 14 | 26,00 | 83 | 0,50 | 4 | 5560714 | ||
| 497616006T | 16,0 | 16 | 32,00 | 92 | 0,50 | 4 | 5560715 | ||
| 497620007T | 20,0 | 20 | 38,00 | 104 | 0,50 | 4 | 5560717 |
