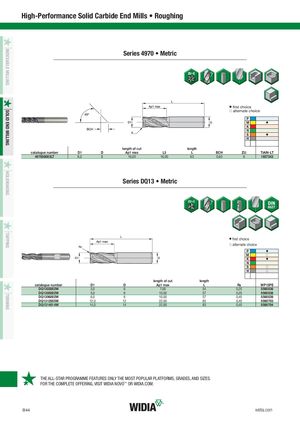

Каталог Widia all star 2020 - страница 166
Навигация
Каталог Widia техническое руководство по разверткам
Каталог Widia достижения 2020
Каталог Widia инструмент для обработки отверстий 2017
Каталог Widia монолитный инструмент 2017
Каталог Widia цельные концевые фрезы- TABLE OF CONTENTS
- INDEXABLE MILLING
- 0º/90º SHOULDER MILLS
- 90° HIGH-SPEED CUTTING MILLS
- FACE MILLS
- HIGH-FEED MILLS
- COPY MILLS
- SOLID END MILLING
- HIGH-PERFORMANCE SOLID CARBIDE END MILLS
- GENERAL PURPOSE SOLID CARBIDE END MILLS
- HOLEMAKING
- SOLID CARBIDE DRILLS
- MODULAR DRILLS
- INDEXABLE DRILLS
- TAPPING
- TURNING
- HIGH-PERFORMANCE INSERTS
- GROOVING & CUT-OFF
- Informational Icons Guide
- Material Overview • DIN
Series 4970 • Metric
v first choice j alternate choice P M v K N S v H length of cut length
| catalogue number | D1 | D | Ap1 max | L3 | L | BCH | ZU | TiAlN-LT |
| 497008003LT | 8,0 | 8 | 16,00 | 16,00 | 63 | 0,60 | 6 | 1657243 |
Series DQ13 • Metric
v first choice j alternate choice
| P | v | |||||||
| M | j | |||||||
| K | v | |||||||
| N | ||||||||
| S | j | |||||||
| H | j | |||||||
| length of cut | length | |||||||
| catalogue number | D1 | D | Ap1 max | L | Re | WP15PE | ||
| DQ1303002W | 3,0 | 6 | 7,00 | 54 | 0,25 | 5560536 | ||
| DQ1305002W | 5,0 | 6 | 10,00 | 57 | 0,25 | 5560538 | ||
| DQ1306002W | 6,0 | 6 | 10,00 | 57 | 0,45 | 5560539 | ||
| DQ1312005W | 12,0 | 12 | 22,00 | 83 | 0,45 | 5560703 | ||
| DQ1314014W | 14,0 | 14 | 22,00 | 83 | 0,45 | 5560704 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
