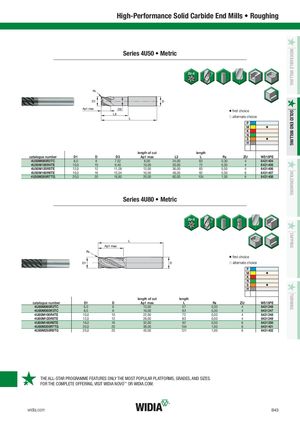

Series 4U50 • Metric
v first choice j alternate choice P M v K N S v H length of cut length
| catalogue number | D1 | D | D3 | Ap1 max | L3 | L | Re | ZU | WS15PE |
| 4U50M080R3TC | 8,0 | 8 | 7,52 | 8,00 | 24,00 | 63 | 0,30 | 4 | 6431404 |
| 4U50M100R4TE | 10,0 | 10 | 9,40 | 10,00 | 30,00 | 72 | 0,50 | 4 | 6431405 |
| 4U50M120R5TE | 12,0 | 12 | 11,28 | 12,00 | 36,00 | 83 | 0,50 | 4 | 6431406 |
| 4U50M160R6TE | 16,0 | 16 | 15,04 | 16,00 | 48,00 | 92 | 0,50 | 6 | 6431407 |
| 4U50M200R7TG | 20,0 | 20 | 18,80 | 20,00 | 60,00 | 104 | 1,00 | 6 | 6431408 |
Series 4U80 • Metric
| vfirst choice jalternate choic | e | ||||||
| P M | v | ||||||
| K N | |||||||
| S | v | ||||||
| H | |||||||
| catalogue number | D1 | D | length of cut Ap1 max | length L | R e | ZU | WS15PE |
| 4U80M060R2TC | 6,0 | 6 | 13,00 | 57 | 0,30 | 4 | 6431246 |
| 4U80M080R3TC | 8,0 | 8 | 16,00 | 63 | 0,30 | 4 | 6431247 |
| 4U80M100R4TE | 10,0 | 10 | 22,00 | 72 | 0,50 | 4 | 6431248 |
| 4U80M120R5TE | 12,0 | 12 | 26,00 | 83 | 0,50 | 4 | 6431249 |
| 4U80M160R6TE | 16,0 | 16 | 32,00 | 92 | 0,50 | 6 | 6431250 |
| 4U80M200R7TG | 20,0 | 20 | 38,00 | 104 | 1,00 | 6 | 6431401 |
| 4U80M250R8TG | 25,0 | 25 | 45,00 | 121 | 1,00 | 6 | 6431402 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
