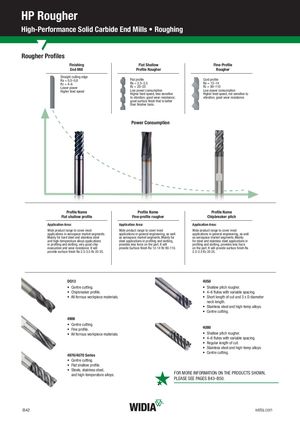

HP Rougher
Rougher Profiles
| Finishing | Flat Shallow | Fine-Profile | |
| End Mill | Profile Rougher | Rougher | |
| Straight cutting edge |
| Ra = 0,5–0,8 | Flat profile | Cord profile |
| Rz = 4–6 | Ra = 2,5–3,5 | Ra = 12–14 |
| Lower power | Rz = 20–25 | Rz = 90–110 |
| Higher feed speed | Low power consumption | Low power consumption |
Higher feed speed, less sensitive Higher feed speed, not sensitive to to vibration, good wear resistance; vibration, good wear resistance. good surface finish that is better than finisher tools.
Power Consumption
Profile Name Profile Name Profile Name
Flat shallow profile Fine-profile rougher Chipbreaker pitch
| Application Area: | Application Area: | Application Area: |
| Wide product range to cover most | Wide product range to cover most | Wide product range to cover most |
| applications in aerospace market segments. | applications in general engineering, as well | applications in general engineering, as well |
| Mainly for hard steel and stainless steel | as aerospace market segments. Mainly for | as aerospace market segments. Mainly |
| and high-temperature alloys applications | steel applications in profiling and slotting, | for steel and stainless steel applications in |
| in profiling and slotting, very good chip | provides less force on the part. It will | profiling and slotting, provides less force |
| evacuation and wear resistance. It will | provide Surface finish Ra 12-14 Rz 90-110. | on the part. It will provide surface finish Ra |
provide surface finish Ra 2.5-3.5 Rz 20 25. 2.5-3.5 Rz 20 25.
DQ13
- Centre cutting.
- Chipbreaker profile.
- All ferrous workpiece materials.
4906
- Centre cutting.
- Fine profile.
- All ferrous workpiece materials.
4976/4U70 Series
- Centre cutting.
- Flat shallow profile.
- Steels, stainless steel, and high-temperature alloys.
4U50
- Shallow pitch rougher.
- 4–6 flutes with variable spacing.
- Short length of cut and 3 x D diameter neck length.
- Stainless steel and high-temp alloys.
- Centre cutting.
4U80
- Shallow pitch rougher.
- 4–6 flutes with variable spacing.
- Regular length of cut.
- Stainless steel and high-temp alloys.
- Centre cutting.
FOR MORE INFORMATION ON THE PRODUCTS SHOWN, PLEASE SEE PAGES B43–B50.
