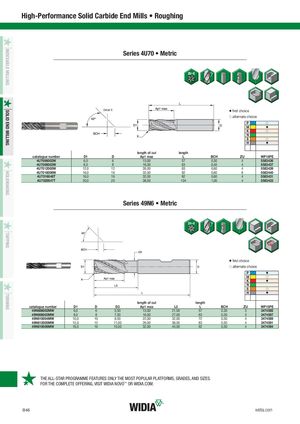

Каталог Widia all star 2020 - страница 168
Навигация
Каталог Widia техническое руководство по разверткам
Каталог Widia достижения 2020
Каталог Widia инструмент для обработки отверстий 2017
Каталог Widia монолитный инструмент 2017
Каталог Widia цельные концевые фрезы- TABLE OF CONTENTS
- INDEXABLE MILLING
- 0º/90º SHOULDER MILLS
- 90° HIGH-SPEED CUTTING MILLS
- FACE MILLS
- HIGH-FEED MILLS
- COPY MILLS
- SOLID END MILLING
- HIGH-PERFORMANCE SOLID CARBIDE END MILLS
- GENERAL PURPOSE SOLID CARBIDE END MILLS
- HOLEMAKING
- SOLID CARBIDE DRILLS
- MODULAR DRILLS
- INDEXABLE DRILLS
- TAPPING
- TURNING
- HIGH-PERFORMANCE INSERTS
- GROOVING & CUT-OFF
- Informational Icons Guide
- Material Overview • DIN
Series 4U70 • Metric
Detail X v first choice j alternate choice
| P | j | ||||||||
| M | v | ||||||||
| K | j | ||||||||
| N | |||||||||
| S | j | ||||||||
| H | v | ||||||||
| length of cut | length | ||||||||
| catalogue number | D1 | D | Ap1 max | L | BCH | ZU | WP15PE | ||
| 4U7006002W | 6,0 | 6 | 13,00 | 57 | 0,30 | 4 | 5583436 | ||
| 4U7008003W | 8,0 | 8 | 16,00 | 63 | 0,40 | 4 | 5583437 | ||
| 4U7012005W | 12,0 | 12 | 26,00 | 83 | 0,60 | 4 | 5583439 | ||
| 4U7016006W | 16,0 | 16 | 32,00 | 92 | 0,60 | 6 | 5583440 | ||
| 4U7016046T | 16,0 | 16 | 32,00 | 92 | 0,60 | 4 | 5583431 | ||
| 4U7020047T | 20,0 | 20 | 38,00 | 104 | 1,00 | 4 | 5583433 |
Series 49N6 • Metric
v first choice j alternate choice
| P | v | |||||||||
| M | j | |||||||||
| K | v | |||||||||
| N | ||||||||||
| S | j | |||||||||
| H | v | |||||||||
| length of cut | length | |||||||||
| catalogue number | D1 | D | D3 | Ap1 max | L3 | L | BCH | ZU | WP15PE | |
| 49N606002MW | 6,0 | 6 | 5,50 | 13,00 | 21,00 | 57 | 0,30 | 3 | 3474585 | |
| 49N608003MW | 8,0 | 8 | 7,50 | 16,00 | 27,00 | 63 | 0,30 | 3 | 3474587 | |
| 49N610004MW | 10,0 | 10 | 9,50 | 22,00 | 32,00 | 72 | 0,50 | 4 | 3474589 | |
| 49N612005MW | 12,0 | 12 | 11,00 | 26,00 | 38,00 | 83 | 0,50 | 4 | 3474591 | |
| 49N616006MW | 16,0 | 16 | 15,00 | 32,00 | 44,00 | 92 | 0,50 | 4 | 3474594 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
