- Material Overview • DIN

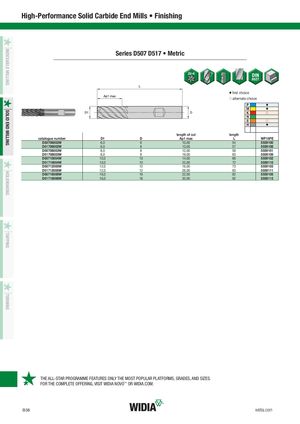

Series D507 D517 • Metric
v first choice j alternate choice
| P | v | ||||||
| M | v | ||||||
| K | j | ||||||
| N | |||||||
| S | j | ||||||
| H | v | ||||||
| length of cut | length | ||||||
| catalogue number | D1 | D | Ap1 max | L | WP15PE | ||
| D50706002W | 6,0 | 6 | 10,00 | 54 | 5559100 | ||
| D51706002W | 6,0 | 6 | 13,00 | 57 | 5559108 | ||
| D50708003W | 8,0 | 8 | 12,00 | 58 | 5559101 | ||
| D51708003W | 8,0 | 8 | 19,00 | 63 | 5559109 | ||
| D50710004W | 10,0 | 10 | 14,00 | 66 | 5559102 | ||
| D51710004W | 10,0 | 10 | 22,00 | 72 | 5559110 | ||
| D50712005W | 12,0 | 12 | 16,00 | 73 | 5559103 | ||
| D51712005W | 12,0 | 12 | 26,00 | 83 | 5559111 | ||
| D50716006W | 16,0 | 16 | 22,00 | 82 | 5559105 | ||
| D51716006W | 16,0 | 16 | 32,00 | 92 | 5559113 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
