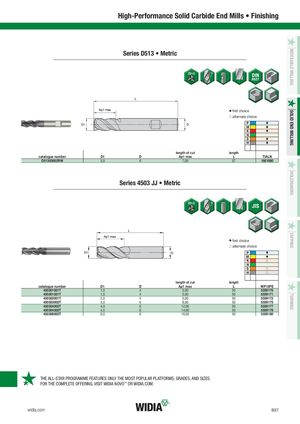

Series D513 • Metric
v first choice j alternate choice
| P | v | |||||
| M | v | |||||
| K | v | |||||
| N | ||||||
| S | v | |||||
| H | v | |||||
| length of cut | length | |||||
| catalogue number | D1 | D | Ap1 max | L | TIALN | |
| D51303002RW | 3,0 | 6 | 7,00 | 57 | 1661680 |
Series 4503 JJ • Metric
v first choice j alternate choice
| P | v | ||||||
| M | v | ||||||
| K | j | ||||||
| N | |||||||
| S | j | ||||||
| H | j | ||||||
| length of cut | length | ||||||
| catalogue number | D1 | D | Ap1 max | L | WP15PE | ||
| 450301001T | 1,0 | 4 | 3,00 | 50 | 5559170 | ||
| 450301501T | 1,5 | 4 | 3,00 | 50 | 5559171 | ||
| 450302001T | 2,0 | 4 | 3,00 | 50 | 5559172 | ||
| 450303002T | 3,0 | 6 | 8,00 | 50 | 5559175 | ||
| 450304002T | 4,0 | 6 | 12,00 | 50 | 5559177 | ||
| 450304502T | 4,5 | 6 | 14,00 | 50 | 5559178 | ||
| 450306002T | 6,0 | 6 | 16,00 | 50 | 5559180 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO™ OR WIDIA.COM.
