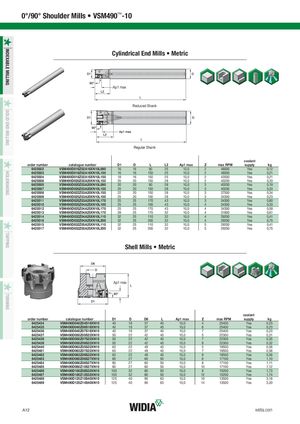

- Material Overview • DIN
Cylindrical End Mills • Metric
Ap1 max
Reduced Shank
Regular Shank
coolant
| order number | catalogue number D1 | D | L | L2 | Ap1 max | Z | max RPM | supply | kg | |
| 6425502 | VSM490D016Z02A16XN10L090 | 16 | 16 | 90 | 25 | 10,0 | 2 | 48000 | Yes | 0,12 |
| 6425503 | VSM490D016Z02A16XN10L150 | 16 | 16 | 150 | 25 | 10,0 | 2 | 48000 | Yes | 0,21 |
| 6425504 | VSM490D018Z02A16XN10L150 | 18 | 16 | 150 | 25 | 10,0 | 2 | 43500 | Yes | 0,21 |
| 6425506 | VSM490D020Z02A20XN10L150 | 20 | 20 | 150 | 28 | 10,0 | 2 | 40200 | Yes | 0,33 |
| 6425505 | VSM490D020Z03A20XN10L090 | 20 | 20 | 90 | 28 | 10,0 | 3 | 40200 | Yes | 0,19 |
| 6425507 | VSM490D020Z03A20XN10L150 | 20 | 20 | 150 | 28 | 10,0 | 3 | 40200 | Yes | 0,33 |
| 6425508 | VSM490D022Z03A20XN10L150 | 22 | 20 | 150 | 28 | 10,0 | 3 | 37500 | Yes | 0,34 |
| 6425509 | VSM490D025Z03A20XN10L100 | 25 | 20 | 100 | 28 | 10,0 | 3 | 34300 | Yes | 0,23 |
| 6425511 | VSM490D025Z03A25XN10L170 | 25 | 25 | 170 | 43 | 10,0 | 3 | 34300 | Yes | 0,60 |
| 6425510 | VSM490D025Z04A25XN10L100 | 25 | 25 | 100 | 43 | 10,0 | 4 | 34300 | Yes | 0,33 |
| 6425512 | VSM490D025Z04A25XN10L170 | 25 | 25 | 170 | 43 | 10,0 | 4 | 34300 | Yes | 0,59 |
| 6425513 | VSM490D028Z04A25XN10L170 | 28 | 25 | 170 | 32 | 10,0 | 4 | 31800 | Yes | 0,61 |
| 6425514 | VSM490D032Z04A25XN10L110 | 32 | 25 | 110 | 32 | 10,0 | 4 | 29200 | Yes | 0,41 |
| 6425516 | VSM490D032Z04A25XN10L200 | 32 | 25 | 200 | 32 | 10,0 | 4 | 29200 | Yes | 0,75 |
| 6425515 | VSM490D032Z05A25XN10L110 | 32 | 25 | 110 | 32 | 10,0 | 5 | 29200 | Yes | 0,41 |
| 6425517 | VSM490D032Z05A25XN10L200 | 32 | 25 | 200 | 32 | 10,0 | 5 | 29200 | Yes | 0,75 |
Shell Mills • Metric
Ap1 max
coolant
| order number | catalogue number D1 | D | D6 | L | Ap1 max | Z | max RPM | supply | kg | |
| 6425434 | VSM490D040Z04S16XN10 | 40 | 16 | 37 | 40 | 10,0 | 4 | 25400 | Yes | 0,23 |
| 6425435 | VSM490D040Z06S16XN10 | 40 | 16 | 37 | 40 | 10,0 | 6 | 25400 | Yes | 0,23 |
| 6425436 | VSM490D040Z07S16XN10 | 40 | 16 | 37 | 40 | 10,0 | 7 | 25400 | Yes | 0,23 |
| 6425437 | VSM490D050Z05S22XN10 | 50 | 22 | 42 | 40 | 10,0 | 5 | 22300 | Yes | 0,31 |
| 6425438 | VSM490D050Z07S22XN10 | 50 | 22 | 42 | 40 | 10,0 | 7 | 22300 | Yes | 0,35 |
| 6425439 | VSM490D050Z09S22XN10 | 50 | 22 | 42 | 40 | 10,0 | 9 | 22300 | Yes | 0,32 |
| 6425440 | VSM490D063Z05S22XN10 | 63 | 22 | 49 | 40 | 10,0 | 5 | 19500 | Yes | 0,56 |
| 6425481 | VSM490D063Z07S22XN10 | 63 | 22 | 49 | 40 | 10,0 | 7 | 19500 | Yes | 0,56 |
| 6425482 | VSM490D063Z09S22XN10 | 63 | 22 | 49 | 40 | 10,0 | 9 | 19500 | Yes | 0,56 |
| 6425483 | VSM490D080Z06S27XN10 | 80 | 27 | 60 | 50 | 10,0 | 6 | 17100 | Yes | 1,10 |
| 6425484 | VSM490D080Z08S27XN10 | 80 | 27 | 60 | 50 | 10,0 | 8 | 17100 | Yes | 1,11 |
| 6425485 | VSM490D080Z10S27XN10 | 80 | 27 | 60 | 50 | 10,0 | 10 | 17100 | Yes | 1,12 |
| 6425486 | VSM490D100Z08S32XN10 | 100 | 32 | 80 | 50 | 10,0 | 8 | 15200 | Yes | 1,73 |
| 6425487 | VSM490D100Z12S32XN10 | 100 | 32 | 80 | 50 | 10,0 | 12 | 15200 | Yes | 1,74 |
| 6425488 | VSM490D125Z10S40XN10 | 125 | 40 | 90 | 63 | 10,0 | 10 | 13500 | Yes | 3,18 |
| 6425489 | VSM490D125Z14S40XN10 | 125 | 40 | 90 | 63 | 10,0 | 14 | 13500 | Yes | 3,20 |
