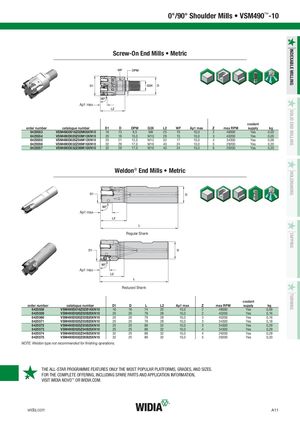

Каталог Widia all star 2020 - страница 15
Навигация
Каталог Widia техническое руководство по разверткам
Каталог Widia достижения 2020
Каталог Widia инструмент для обработки отверстий 2017
Каталог Widia монолитный инструмент 2017
Каталог Widia цельные концевые фрезы- TABLE OF CONTENTS
- INDEXABLE MILLING
- 0º/90º SHOULDER MILLS
- 90° HIGH-SPEED CUTTING MILLS
- FACE MILLS
- HIGH-FEED MILLS
- COPY MILLS
- SOLID END MILLING
- HIGH-PERFORMANCE SOLID CARBIDE END MILLS
- GENERAL PURPOSE SOLID CARBIDE END MILLS
- HOLEMAKING
- SOLID CARBIDE DRILLS
- MODULAR DRILLS
- INDEXABLE DRILLS
- TAPPING
- TURNING
- HIGH-PERFORMANCE INSERTS
- GROOVING & CUT-OFF
- Informational Icons Guide
- Material Overview • DIN
Screw-On End Mills • Metric
Ap1 max
coolant
| order number | catalogue number D1 | D | DPM | G3X | L2 | WF | Ap1 max | Z | max RPM | supply | kg | |
| 6425553 | VSM490D016Z02M08XN10 | 16 | 13 | 8,5 | M8 | 25 | 10 | 10,0 | 2 | 48000 | Yes | 0,03 |
| 6425554 | VSM490D020Z03M10XN10 | 20 | 18 | 10,5 | M10 | 28 | 15 | 10,0 | 3 | 40200 | Yes | 0,05 |
| 6425555 | VSM490D025Z04M12XN10 | 25 | 21 | 12,5 | M12 | 32 | 17 | 10,0 | 4 | 34300 | Yes | 0,09 |
| 6425556 | VSM490D032Z05M16XN10 | 32 | 29 | 17,0 | M16 | 40 | 24 | 10,0 | 5 | 29200 | Yes | 0,20 |
| 6425557 | VSM490D032Z06M16XN10 | 32 | 29 | 17,0 | M16 | 40 | 24 | 10,0 | 6 | 29200 | Yes | 0,20 |
Weldon® End Mills • Metric
Ap1 max
Regular Shank
Ap1 max
Reduced Shank
| order number | catalogue number | D1 | D | L | L2 | Ap1 max | Z | max RPM | coolant supply | kg |
| 6425558 | VSM490D016Z02B16XN10 | 16 | 16 | 74 | 25 | 10,0 | 2 | 48000 | Yes | 0,09 |
| 6425559 | VSM490D020Z02B20XN10 | 20 | 20 | 79 | 28 | 10,0 | 2 | 40200 | Yes | 0,16 |
| 6425560 | VSM490D020Z03B20XN10 | 20 | 20 | 79 | 28 | 10,0 | 3 | 40200 | Yes | 0,16 |
| 6425571 | VSM490D025Z03B20XN10 | 25 | 20 | 79 | 28 | 10,0 | 3 | 34300 | Yes | 0,18 |
| 6425572 | VSM490D025Z03B25XN10 | 25 | 25 | 89 | 32 | 10,0 | 3 | 34300 | Yes | 0,29 |
| 6425573 | VSM490D025Z04B25XN10 | 25 | 25 | 89 | 32 | 10,0 | 4 | 34300 | Yes | 0,29 |
| 6425574 | VSM490D032Z04B25XN10 | 32 | 25 | 89 | 32 | 10,0 | 4 | 29200 | Yes | 0,29 |
| 6425575 | VSM490D032Z05B25XN10 | 32 | 25 | 89 | 32 | 10,0 | 5 | 29200 | Yes | 0,33 |
NOTE: Weldon type not recommended for finishing operations.
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
