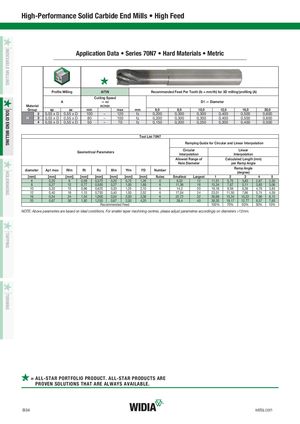

Application Data • Series 70N7 • Hard Materials • Metric
| Profile Milling | AlTiN | Recommended Feed Per Tooth (fz = mm/th) for 3D milling/profiling (A) | |
| Cutting Speed |
| A | — vc | D1 — Diameter | |
| Material | m/min |
| Group | ap | ae | min | max | mm | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||||
| 2 | 0,03 x D | 0,55 x D | 100 | – | 120 | fz | 0,200 | 0,300 | 0,300 | 0,400 | 0,500 | 0,600 | |||
| H | 3 | 0,03 x D | 0,55 x D | 80 | – | 100 | fz | 0,200 | 0,300 | 0,300 | 0,400 | 0,500 | 0,600 | ||
| 4 | 0,03 x D | 0,55 x D | 50 | – | 70 | fz | 0,150 | 0,200 | 0,250 | 0,300 | 0,400 | 0,500 |
Tool List 70N7 Ramping Guide for Circular and Linear Interpolation Circular Linear Geometrical Parameters Interpolation Interpolation Allowed Range of Calculated Length (mm) Hole Diameter per Ramp Angle Ramp Angle
| diameter | Ap1 max | Rfm | Rt | Rc | Xfm | Yfm | YD | Number | ||||||||
| (degree) | ||||||||||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | flutes | Smallest | Largest | 1 | 2 | 3 | 4 | 5 | |
| 6 | 0,20 | 9 | 0,58 | 0,375 | 0,20 | 0,75 | 1,26 | 6 | 8,52 | 12 | 11,51 | 5,75 | 3,83 | 2,87 | 2,30 | |
| 8 | 0,27 | 12 | 0,77 | 0,500 | 0,27 | 1,00 | 1,68 | 6 | 11,36 | 16 | 15,34 | 7,67 | 5,11 | 3,83 | 3,06 | |
| 10 | 0,33 | 15 | 0,96 | 0,625 | 0,33 | 1,25 | 2,10 | 6 | 14,2 | 20 | 19,18 | 9,58 | 6,39 | 4,79 | 3,83 | |
| 12 | 0,40 | 18 | 1,15 | 0,750 | 0,40 | 1,50 | 2,52 | 6 | 17,04 | 24 | 23,01 | 11,50 | 7,66 | 5,74 | 4,59 | |
| 16 | 0,54 | 24 | 1,54 | 1,000 | 0,54 | 2,00 | 3,36 | 6 | 22,72 | 32 | 30,68 | 15,34 | 10,22 | 7,66 | 6,12 | |
| 20 | 0,67 | 30 | 1,92 | 1,250 | 0,67 | 2,50 | 4,20 | 6 | 28,4 | 40 | 38,35 | 19,17 | 12,77 | 9,57 | 7,65 | |
| Recommended Feed | 100% | 70% | 50% | 30% | 10% |
NOTE: Above parametres are based on ideal conditions. For smaller taper machining centres, please adjust parametres accordingly on diameters >12mm.
= ALL-STAR PORTFOLIO PRODUCT. ALL-STAR PRODUCTS ARE
PROVEN SOLUTIONS THAT ARE ALWAYS AVAILABLE.
