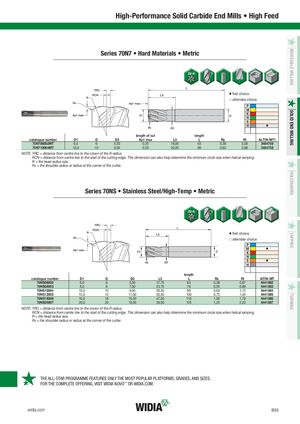

Каталог Widia all star 2020 - страница 155
Навигация
Каталог Widia техническое руководство по разверткам
Каталог Widia достижения 2020
Каталог Widia инструмент для обработки отверстий 2017
Каталог Widia монолитный инструмент 2017
Каталог Widia цельные концевые фрезы- TABLE OF CONTENTS
- INDEXABLE MILLING
- 0º/90º SHOULDER MILLS
- 90° HIGH-SPEED CUTTING MILLS
- FACE MILLS
- HIGH-FEED MILLS
- COPY MILLS
- SOLID END MILLING
- HIGH-PERFORMANCE SOLID CARBIDE END MILLS
- GENERAL PURPOSE SOLID CARBIDE END MILLS
- HOLEMAKING
- SOLID CARBIDE DRILLS
- MODULAR DRILLS
- INDEXABLE DRILLS
- TAPPING
- TURNING
- HIGH-PERFORMANCE INSERTS
- GROOVING & CUT-OFF
- Informational Icons Guide
- Material Overview • DIN
Series 70N7 • Hard Materials • Metric
v first choice j alternate choice P M K N S H v length of cut length
| catalogue number | D1 | D | D3 | Ap1 max | L3 | L | Re | Rt | ALTIN-MT1 |
| 70N706002MT | 6,0 | 6 | 5,50 | 0,20 | 18,00 | 63 | 0,38 | 0,58 | 3484756 |
| 70N710004MT | 10,0 | 10 | 9,00 | 0,33 | 30,00 | 89 | 0,63 | 0,96 | 3484758 |
NOTE: YRC = distance from centre line to the crown of the R radius. RCN = distance from centre line to the start of the cutting edge. This dimension can also help determine the minimum circle size when helical ramping. R = the head radius size. Re = the shoulder radius or radius at the corner of the cutter.
Series 70NS • Stainless Steel/High-Temp • Metric
v first choice j alternate choice P M v K N S v H length
| catalogue number | D1 | D | D3 | L3 | L | Re | Rt | AlTiN-MT |
| 70NS06002 | 6,0 | 6 | 5,50 | 17,75 | 63 | 0,38 | 0,67 | 6441882 |
| 70NS08003 | 8,0 | 8 | 7,50 | 23,75 | 76 | 0,50 | 0,89 | 6441883 |
| 70NS10004 | 10,0 | 10 | 9,00 | 29,50 | 89 | 0,63 | 1,12 | 6441884 |
| 70NS12005 | 12,0 | 12 | 11,00 | 35,50 | 100 | 0,75 | 1,34 | 6441885 |
| 70NS16006 | 16,0 | 16 | 15,00 | 47,50 | 110 | 1,00 | 1,79 | 6441886 |
| 70NS20007 | 20,0 | 20 | 19,00 | 59,50 | 125 | 1,25 | 2,23 | 6441887 |
NOTE: YRC = distance from centre line to the crown of the R radius. RCN = distance from centre line to the start of the cutting edge. This dimension can also help determine the minimum circle size when helical ramping. R = the head radius size. Re = the shoulder radius or radius at the corner of the cutter.
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
