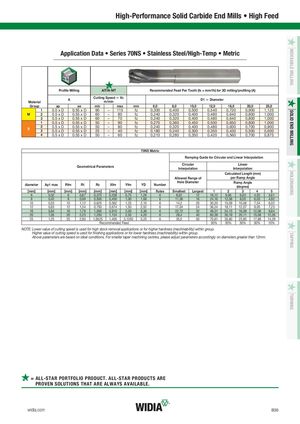

Application Data • Series 70NS • Stainless Steel/High-Temp • Metric
| Profile Milling | AlTiN-MT | Recommended Feed Per Tooth (fz = mm/th) for 3D milling/profiling (A) | ||||
| Cutting Speed — Vc | ||||||
| A | D1 — Diameter | |||||
| Material | m/min |
| Group | ap | ae min | max | mm | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | 25,0 | |||
| 1 | 0.5 x D | 0.55 x D | 90 | – | 115 | fz | 0,300 | 0,400 | 0,500 | 0,540 | 0,720 | 0,900 | 1,125 | |
| M | 2 | 0.5 x D | 0.55 x D | 60 | – | 80 | fz | 0,240 | 0,320 | 0,400 | 0,480 | 0,640 | 0,800 | 1,000 |
| 3 | 0.5 x D | 0.55 x D | 60 | – | 70 | fz | 0,240 | 0,320 | 0,400 | 0,480 | 0,640 | 0,800 | 1,000 | |
| 1 | 0.5 x D | 0.55 x D | 50 | – | 90 | fz | 0,270 | 0,360 | 0,450 | 0,500 | 0,650 | 0,800 | 1,000 | |
| 2 | 0.5 x D | 0.55 x D | 50 | – | 80 | fz | 0,240 | 0,320 | 0,400 | 0,480 | 0,600 | 0,700 | 0,900 | |
| S | ||||||||||||||
| 3 | 0.5 x D | 0.55 x D | 25 | – | 40 | fz | 0,180 | 0,240 | 0,300 | 0,350 | 0,430 | 0,500 | 0,600 | |
| 4 | 0.5 x D | 0.55 x D | 50 | – | 60 | fz | 0,210 | 0,280 | 0,350 | 0,420 | 0,560 | 0,700 | 0,875 |
70NS Metric Ramping Guide for Circular and Linear Interpolation
| Circular | Linear | ||||||||||||||
| Geometrical Parameters | |||||||||||||||
| Interpolation | Interpolation | ||||||||||||||
| Calculated Length (mm) | |||||||||||||||
| Allowed Range of | per Ramp Angle | ||||||||||||||
| Hole Diameter | Ramp Angle | ||||||||||||||
| diameter | Ap1 max | Rfm | Rt | Rc Xfm | Yfm | YD | Number | ||||||||
| (degree) | |||||||||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | flutes | Smallest | Largest | 1 | 2 3 | 4 | 5 | |
| 6 | 0,32 | 6 | 0,67 | 0,375 | 0,338 | 0,75 | 1,26 | 6 | 8,52 | 12 | 18,12 | 9,06 | 6,03 | 4,52 | 3,61 |
| 8 | 0,42 | 8 | 0,89 | 0,500 | 0,450 | 1,00 | 1,68 | 6 | 11,36 | 16 | 24,16 | 12,08 | 8,05 | 6,03 | 4,82 |
| 10 | 0,53 | 10 | 1,12 | 0,625 | 0,562 | 1,25 | 2,10 | 6 | 14,2 | 20 | 30,20 | 15,09 | 10,06 | 7,54 | 6,02 |
| 12 | 0,63 | 12 | 1,34 | 0,750 | 0,674 | 1,50 | 2,52 | 6 | 17,04 | 24 | 36,24 | 18,11 | 12,07 | 9,05 | 7,23 |
| 16 | 0,84 | 16 | 1,79 | 1,000 | 0,915 | 2,00 | 3,36 | 6 | 22,72 | 32 | 48,31 | 24,15 | 16,09 | 12,06 | 9,64 |
| 20 | 1,05 | 20 | 2,23 | 1,250 | 1,124 | 2,50 | 4,20 | 6 | 28,4 | 40 | 60,39 | 30,19 | 20,11 | 15,08 | 12,05 |
| 25 | 1,25 | 25 | 2,90 | 1,5625 | 1,405 | 3,1250 | 5,25 | 6 | 35,5 | 50 | 70,61 | 35,80 | 23,85 | 17,88 | 14,29 |
| Recommended Feed | 30% | 30% | 30% | 30% | 10% |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters greater than 12mm.
= ALL-STAR PORTFOLIO PRODUCT. ALL-STAR PRODUCTS ARE
PROVEN SOLUTIONS THAT ARE ALWAYS AVAILABLE.
