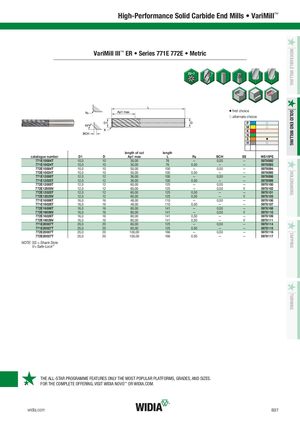

VariMill III™ ER • Series 771E 772E • Metric
v first choice j alternate choice
| P | j | |||||||
| M | j | |||||||
| K | ||||||||
| N | ||||||||
| S | v | |||||||
| H | j | |||||||
| length of cut | length | |||||||
| catalogue number | D1 | D | Ap1 max | L | Re | BCH | SS | WS15PE |
| 771E10004T | 10,0 | 10 | 30,00 | 76 | — | 0,50 | — | 5978092 |
| 771E10024T | 10,0 | 10 | 30,00 | 76 | 0,50 | — | — | 5978093 |
| 772E10004T | 10,0 | 10 | 50,00 | 100 | — | 0,50 | — | 5978094 |
| 772E10024T | 10,0 | 10 | 50,00 | 100 | 0,50 | — | — | 5978095 |
| 771E12005T | 12,0 | 12 | 36,00 | 100 | — | 0,50 | — | 5978098 |
| 771E12025T | 12,0 | 12 | 36,00 | 100 | 0,50 | — | — | 5978099 |
| 772E12005T | 12,0 | 12 | 60,00 | 125 | — | 0,50 | — | 5978100 |
| 772E12005V | 12,0 | 12 | 60,00 | 125 | — | 0,50 | V | 5978102 |
| 772E12025T | 12,0 | 12 | 60,00 | 125 | 0,50 | — | — | 5978101 |
| 772E12025V | 12,0 | 12 | 60,00 | 125 | 0,50 | — | V | 5978103 |
| 771E16006T | 16,0 | 16 | 48,00 | 110 | — | 0,50 | — | 5978106 |
| 771E16026T | 16,0 | 16 | 48,00 | 110 | 0,50 | — | — | 5978107 |
| 772E16006T | 16,0 | 16 | 80,00 | 141 | — | 0,50 | — | 5978108 |
| 772E16006V | 16,0 | 16 | 80,00 | 141 | — | 0,50 | V | 5978110 |
| 772E16026T | 16,0 | 16 | 80,00 | 141 | 0,50 | — | — | 5978109 |
| 772E16026V | 16,0 | 16 | 80,00 | 141 | 0,50 | — | V | 5978111 |
| 771E20007T | 20,0 | 20 | 60,00 | 125 | — | 0,50 | — | 5978114 |
| 771E20027T | 20,0 | 20 | 60,00 | 125 | 0,50 | — | — | 5978115 |
| 772E20007T | 20,0 | 20 | 100,00 | 166 | — | 0,50 | — | 5978116 |
| 772E20027T | 20,0 | 20 | 100,00 | 166 | 0,50 | — | — | 5978117 |
NOTE: SS = Shank Style V= Safe-Lock™
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO™ OR WIDIA.COM.
