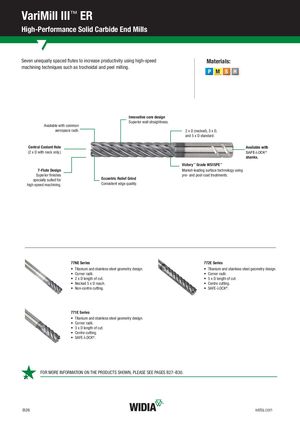

VariMill III™ ER
Seven unequally spaced flutes to increase productivity using high-speed Materials: machining techniques such as trochoidal and peel milling.
P M S H
Innovative core design Superior wall straightness. Available with common aerospace radii. 2 x D (necked), 3 x D, and 5 x D standard. Central Coolant Hole Available with (2 x D with neck only.) SAFE-lOCK® shanks. Victory™ Grade WS15PE™ 7-Flute Design Market-leading surface technology using Superior finishes pre- and post-coat treatments. specially suited for Eccentric Relief Grind high-speed machining. Consistent edge quality.
77NE Series 772E Series
- Titanium and stainless steel geometry design.
- Titanium and stainless steel geometry design.
- Corner radii.
- Corner radii.
- 2 x D length of cut.
- 5 x D length of cut.
- Necked 5 x D reach.
- Centre cutting.
- Non-centre cutting.
- SAFE-lOCK®.
771E Series
- Titanium and stainless steel geometry design.
- Corner radii.
- 3 x D length of cut.
- Centre cutting.
- SAFE-lOCK®.
FOR MORE INFORMATION ON THE PRODUCTS SHOWN, PLEASE SEE PAGES B27–B30.
