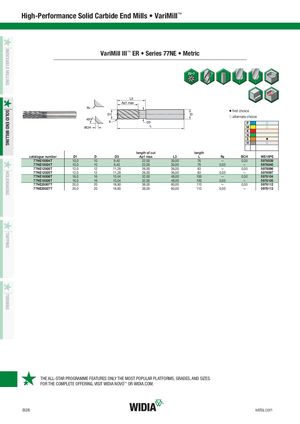

VariMill III™ ER • Series 77NE • Metric
v first choice j alternate choice
| P | j | ||||||||||
| M | j | ||||||||||
| K | |||||||||||
| N | |||||||||||
| S | v | ||||||||||
| H | j | ||||||||||
| length of cut | length | ||||||||||
| catalogue number | D1 | D | D3 | Ap1 max | L3 | L | Re | BCH | WS15PE | ||
| 77NE10004T | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | — | 0,50 | 5978039 | ||
| 77NE10024T | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 0,50 | — | 5978040 | ||
| 77NE12005T | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | — | 0,50 | 5978096 | ||
| 77NE12025T | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 0,50 | — | 5978097 | ||
| 77NE16006T | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | — | 0,50 | 5978104 | ||
| 77NE16026T | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 0,50 | — | 5978105 | ||
| 77NE20007T | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | — | 0,50 | 5978112 | ||
| 77NE20027T | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 0,50 | — | 5978113 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
